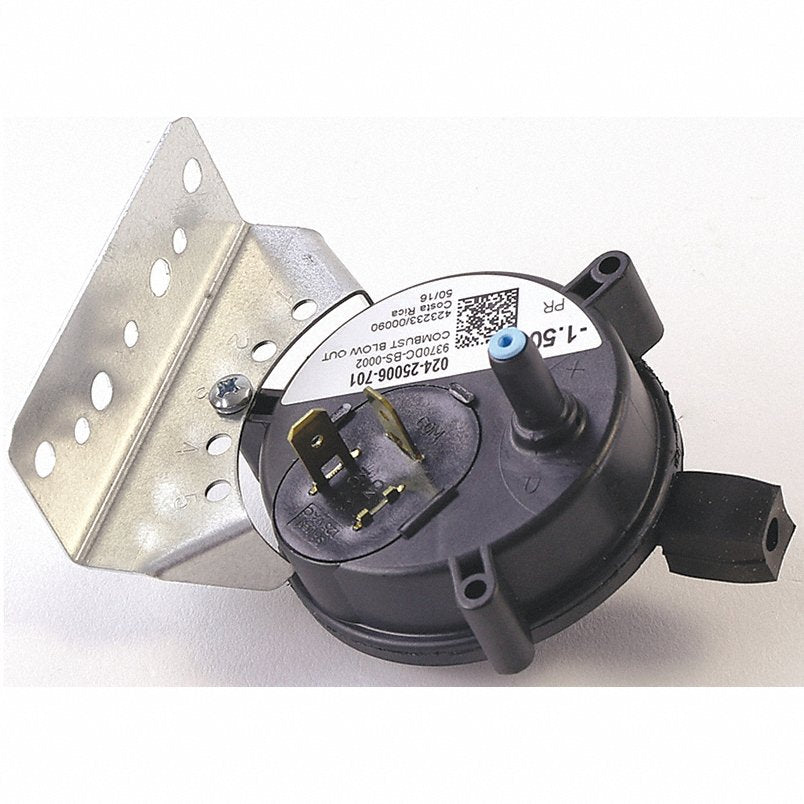

York S1-024-25006-701 -1.50WC SPST Pressure Switch

Product Description

The York S1-024-25006-701 -1.50WC SPST Pressure Switch is built for industrial and commercial use. Featuring a single-pole, single-throw design, it operates within a pressure range of 0 to 100 PSI and can withstand temperatures up to 120 degrees Fahrenheit.

• Pressure range: 0 to 100 PSI
• Maximum operating temperature: 120 degrees Fahrenheit
• Manual reset button for troubleshooting

Product Highlights

This pressure switch is made with a brass body and stainless steel diaphragm to offer durability and resistance to corrosion. Designed for 120/240 VAC with a 50/60 Hz frequency, its electrical rating is 10 amps resistive and 5 amps inductive. It is suitable for various applications including HVAC systems, compressors, and industrial machinery.

Product Information

Standard Information

• Item Number: S1-024-25006-701
• Brand: York

Technical Specifications

• Type: 1-Port
• Pressure Rating: 1.5 in-WC
• Voltage: 120/240 VAC, 50/60 Hz
• Electrical Rating: 10 amps resistive, 5 amps inductive
• Media Temperature: Up to 120 degrees Fahrenheit
• Housing: Brass
• Diaphragm: Stainless Steel
• Electrical Connection: 1/2 NPT
