York S1-01504811004 Compressor for ZPS40K5E-PFV-800 40,000 Btu/hr (3 Ton)

Product Description

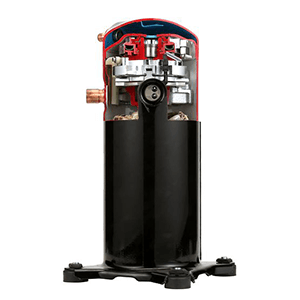

The York S1-01504811004 is a scroll compressor for the ZPS40K5E-PFV-800 air conditioning system. It delivers 40,000 Btu/hr capacity, operates on 208/230 VAC single-phase power at 60 Hz with a 3500 rpm motor, and uses R-410A refrigerant with 3MA polyol ester (POE) oil. The unit includes UltraTech modulation, permanent split capacitor run, internal inherent protection, and a molded service plug.

• 40,000 Btu/hr capacity for air conditioning; 3 ton rating
• 208/230 VAC, 1 ph, 60 Hz operation with 3500 rpm and 104 A locked rotor specification
• R-410A refrigerant, 3MA POE oil, UltraTech modulation, internal protection, molded plug service

Product Highlights

Scroll compressor for HVAC systems; 40,000 Btu/hr, 208/230 VAC, R-410A, 3500 rpm, permanent split capacitor run

Product Information

Standard Information

• Brand: YORK
• Manufacturer Part Number: S1-01504811004

Technical Specifications

• Brand: York
• Manufacturer Part Number: S1-01504811004
• Item Name: Scroll Compressor
• Product Type: Compressor
• Application: ZPS40K5E-PFV-800 / air conditioners
• Capacity (BTU/hr): 40,000 Btu/hr
• Tonnage: 3 ton
• Voltage (Input Voltage): 208/230 VAC
• Phase: 1 ph
• Frequency: 60 Hz
• Rated RPM: 3500 rpm
• Refrigerant: R-410A
• Oil Type: 3MA Polyol Ester (POE)
• Amperage (Locked Rotor): 104 A (locked rotor current — seems high but plausible for this size/voltage; low confidence)
• Mass Flow: 607/679 lb/hr (manufacturer-provided mass flow; unusual unit for customer spec but retained)
• EER: 11+
• Connection Type: Stub, 1/2 in discharge x 7/8 in suction
• Dimensions: 16.9 in H
• Foot Mount Size: 7-1/2 in
• Features: High temperature and ultra high pressure tolerance; UltraTech modulation; permanent split capacitor run; internal inherent protection; molded plug service
