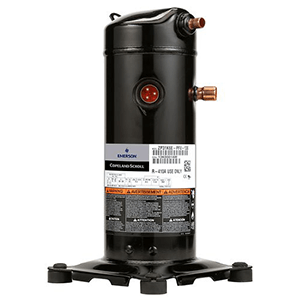

York S1-01504787004 Scroll Compressor 21000 Btu/hr 208/230 VAC R-410A

Product Description

The York S1-01504787004 is a scroll compressor designed for high efficiency in air conditioning applications. This compressor delivers a cooling capacity of twenty-one thousand BTUs per hour and operates at a voltage of two hundred eight to two hundred thirty VAC. Designed to work with R-410A refrigerant, it ensures reliable performance in residential and commercial settings.

• Supports high temperature and ultra high pressure operations.
• Features a permanent split capacitor for reliable starting.
• Incorporates built-in protection mechanisms for safety.

Product Highlights

This scroll compressor is suitable for air conditioning systems and boasts efficient cooling capabilities. Its robust construction ensures durability while meeting various HVAC standards.

Product Information

Standard Information

• Brand: York
• Part Number: S1-01504787004

Technical Specifications

• Amperage Rating: 10.9 A Rated Load, 61.6 A Locked Rotor, 17 A Maximum Continuous
• BTU Rating: 21000 Btu/hr
• Connection Type: 1/2 in Discharge x 3/4 in Suction
• EER: 11+
• Frequency Rating: 60 Hz
• Item Name: Scroll Compressor
• Mass Flow: 351/309 lb/hr
• Oil Type: 3MA Polyol Ester (POE)
• Phase: 1 ph
• RPM: 3500 rpm
• Refrigerant: R-410A
• Voltage Rating: 208/230 VAC
