Description

Product Description

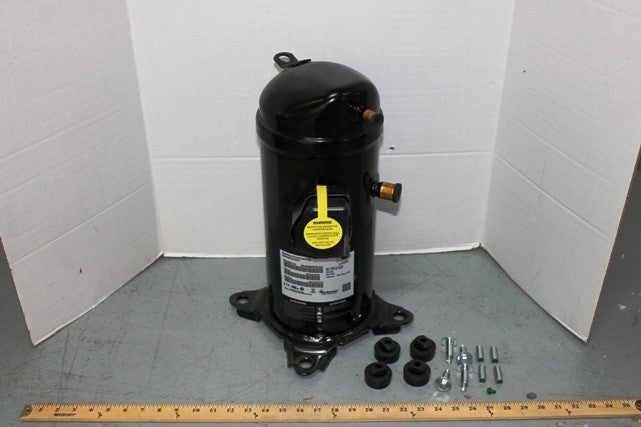

York S1-01503676004 is an OEM scroll compressor, model HRH051U2LP6, for residential and light commercial air conditioning. The unit is rated about 52.22 kBtu/hr (approximately 4-1/4 HP) and is configured for R-410A refrigerant with brazed discharge and suction connections. Electrical ratings include 200/220 VAC at 50 Hz and 208/230 VAC at 60 Hz for three-phase operation.

  • Scroll compressor for R-410A refrigerant; model HRH051U2LP6, MPN S1-01503676004
  • Electrical: 200/220 VAC at 50 Hz; 208/230 VAC at 60 Hz; 3-phase; rated load 17.6 A, locked rotor 120 A
  • Physical/package dimensions 20.0 x 18.0 x 18.0 in; brazed 1/2 in discharge x 7/8 in suction connections
  • Oil type: PVE; RPM ~2900 rpm (50 Hz) / ~3500 rpm (60 Hz)
  • Certifications: UL listed; CE certified

Product Highlights

OEM York scroll compressor, 4-1/4 HP (≈52.22 kBtu/hr), R-410A, 208-230V 60 Hz 3-phase, brazed connections, internal motor protection

Product Information

Standard Information

  • Brand: YORK
  • Manufacturer Part Number: S1-01503676004
Technical Specifications
Brand
York
Manufacturer Part Number
S1-01503676004
Model
HRH051U2LP6
Item Name
Scroll Compressor
Compressor Type
Scroll compressor
Horsepower
4-1/4 HP
BTU Rating
52.22 kBtu/hr
Refrigerant
R-410A
Voltage Rating
200/220 VAC at 50 Hz; 208/230 VAC at 60 Hz
Frequency
50/60 Hz
Phase
3 ph
Amperage Rating
17.6 A rated load
Locked Rotor Amperage
120 A
Connection Type
Brazed, 1/2 in discharge x 7/8 in suction
Oil Type
PVE
RPM
2900 rpm at 50 Hz; 3500 rpm at 60 Hz
Pressure Rating
31.1 - 46.1 bar (flag: verify units — may be reported in psi)
Dimensions
20.0 x 18.0 x 18.0 in (50.8 x 45.72 x 45.72 cm)
Dimensional Weight
31.68 lb (packaging/dimensional weight — not actual product mass)
Package Length
20.0 in
Package Width
18.0 in
Package Height
18.0 in
Product Code
8120050 (812-0050)
AllPoints OEM Part Number
YORS1-01503676004
Applications
Residential and light commercial air conditioning
Certifications
UL listed; CE certified
