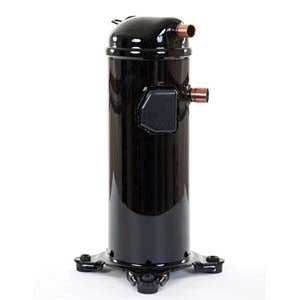

York S1-01503595004 Scroll Compressor 51.88 kBtu/hr 208/230 VAC R-410A

Product Description

The York S1-01503595004 is a scroll compressor designed for residential and light commercial air conditioning. It operates at a voltage of two hundred eight to two hundred thirty volts and has a cooling capacity of fifty-one point eight-eight kBtu per hour using R-410A refrigerant.

• High efficiency and performance
• Lightweight design with fewer internal parts
• Quiet operation with internal motor protection

Product Highlights

This compressor is ideal for use in various cooling applications, ensuring reliable performance through its robust construction.

Product Information

Standard Information

• Brand: York
• Part Number: S1-01503595004

Technical Specifications

• BTU Rating: 51.88 kBtu/hr
• Voltage Rating: 208/230 VAC
• Amperage Rating: 26.3 A Rated Load, 150 A Locked Rotor
• Refrigerant: R-410A
• Oil Type: PVE
• Frequency Rating: 60 Hz
• Phase: 1 ph
• Temperature Rating: 45 - 100 deg F
• Pressure Rating: 31.1 - 46.1 bar
• RPM: 3500 rpm
• Dimensions: 239 mm L x 455 mm H x 184 mm Dia
• Weight: 93 lbs
