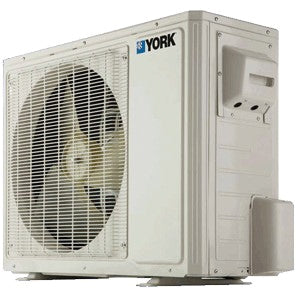

York DHP09CSB21S P Series 1-Stage Single Zone Mini-Split Outdoor Unit 9 Btu/hr 18 SEER

Product Description

The York DHP09CSB21S is a P Series mini-split outdoor unit designed for single zone applications. This model provides an output of 9 BTU/hour and features a high SEER of 18 for energy efficiency. It is suitable for various HVAC installations where space is limited.

• Inverter Driven Compressor
• Quiet Operation at 52 dBA
• Robust Temperature Range: 0 to 115 degrees Fahrenheit Cooling

Product Highlights

The York DHP09CSB21S enhances comfort with advanced inverter technology, optimizing cooling and heating performance.

Product Information

Standard Information

• Brand: York
• Type: Single Zone

Technical Specifications

• BTU Rating: 9 Btu/hr
• SEER: 18
• EER: 10
• HSPF: 9
• Decibel Rating: 52 dBA
• Dimension: 30-1/2 in W x 21 in H x 12-1/2 in D
• Connection Size: 1/4 in Liquid, 3/8 in Gas
• Voltage Rating: 208/230 VAC
• Refrigerant: R-410A
• Amperage Rating: 4 A Cooling, 3.6 A Heating
• Fuse Size: 9 A MCA, 15 A MOCP
• Temperature Rating: 0 - 115 deg F Cooling, -4 to 75 deg F Heating
• Phase: 1 ph
• Mounting: Wall
• Stages: 1
• Compressor Type: Inverter Driven
• Frequency Rating: 60 Hz
