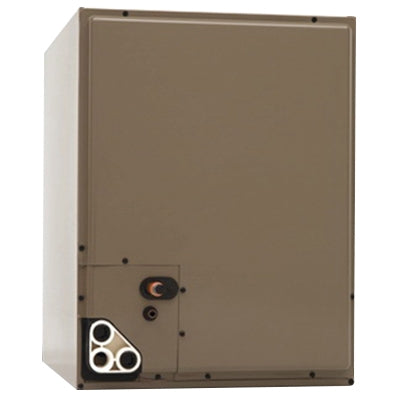

York CM24AXA1 Add-On Indoor Coil 2 Ton

Product Description

The York CM24AXA1 is a full-cased add-on indoor coil designed for effective air conditioning and heat pump systems. This 2-ton indoor coil is made from heavy-gauge galvanized steel and features MaxAlloy aluminum coils for durability and efficiency.

• Designed for use with UPG furnaces or modular air handlers.
• Multi-position installation capabilities with conversion options.
• Factory-installed electronic expansion valve on select models.

Product Highlights

The CM24AXA1 offers superior performance and easy installation. It includes foil-faced insulation for better energy retention and lower air leakage, ensuring effective heating and cooling in residential systems.

Product Information

Standard Information

• Brand: York
• Manufacturer: York

Technical Specifications

• Air Flow Direction: Multi-Position
• CFM Rating: 800 cfm
• Coil Rating: 4.99 sq-ft Face Area, 2 Rows, 14 fins/in
• Coil Size: (3) 14 x 17.1 in
• Connection Type: 3/8 in Sweat Liquid, 3/4 in Sweat Vapor
• Dimension: 14-1/2 in W x 19-1/2 in H x 21-1/2 in D
• Finish: Galvanized
• Material: Steel
• Model: CM24A
• Nominal Capacity: 2 ton
• Refrigerant: R-410A, R-22
• Series: CM
• Type: Full-Cased
