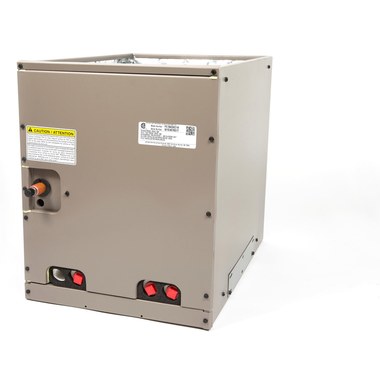

York CF36AXA1 Indoor Coil 3 ton Full-Cased

Product Description

The York CF36AXA1 is an add-on indoor coil designed for use with UPG furnaces and modular air handlers. With a three-ton capacity, this galvanized steel coil is suitable for both upflow and downflow applications.

• Constructed from heavy gauge galvanized steel
• Features MaxAlloy aluminum coils for durability
• Compact design for easy attic access

Product Highlights

This indoor coil ensures efficient heat exchange and enhanced airflow for optimal temperature control. It is engineered for compatibility with both cooling and heating systems.

Product Information

Standard Information

• Brand: York
• MPN: CF36AXA1

Technical Specifications

• Air Flow Direction: Upflow/Downflow
• CFM Rating: 1200 cfm
• Coil Rating: 7.12 sq-ft Face Area, 2 Rows, 14 fins/in
• Coil Size: (3) 20 x 17.1 in
• Connection Type: 3/8 in Sweat Liquid, 3/4 in Sweat Vapor
• Dimension: 14-1/2 in W x 25-1/2 in H x 21-1/2 in D
• Finish: Galvanized
• Item Name: Add-On Indoor Coil
• Material: Steel
• Model: CF36A
• Nominal Capacity: 3 ton
• Refrigerant: R-410A, R-22
• Series: CF
• Type: Full-Cased
