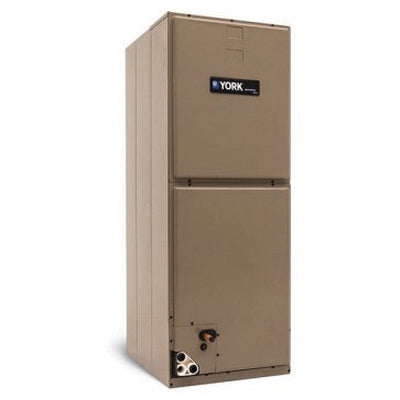

York AVV61CE421 Air Handler with Electronic Expansion Valve 5 ton

Product Description

The York AVV61CE421 is a 5-ton air handler featuring an electronic expansion valve. This unit is designed for optimal performance across various applications including up flow, down flow, and horizontal configurations.

• Application flexibility for up flow, down flow, and horizontal use.
• Factory-installed electronic expansion valve for precise refrigerant control.
• Constructed from heavy gauge galvanized steel for durability.

Product Highlights

The York AVV61CE421 air handler is engineered to deliver efficient, quiet operation tailored to specific comfort requirements. Its compact design allows for easy installation in confined spaces.

Product Information

Standard Information

• Brand: York
• Manufacturer: York

Technical Specifications

• Amperage Rating: 7 A
• CFM Rating: 1600 cfm
• Coil Rating: 7.6 sq-ft Face Area, 3 Rows, 12 fins/in
• Coil Size: (2) 32 x 17.1 in
• Configuration: Multi-Position
• Connection Type: 3/8 in Sweat Liquid, 7/8 in Sweat Vapor
• Dimensions: 21 in W x 60 in H x 21-1/2 in D
• Filter Size: 20 x 20 x 1 in
• Finish: G30 Galvanized
• Frequency Rating: 60 Hz
• HP Rating: 3/4 hp
• Item Name: Air Handler with Electronic Expansion Valve
• Material: Steel
• Model: 61C
• Motor Type: Variable-Speed ECM
• Nominal Capacity: 5 ton
• Phase: 1 ph
• RPM: 1050 rpm
• Series: AVV
• Sub Brand: Affinity
• Type: 1-Piece
• Voltage Rating: 208/230 VAC
• Standards/Certifications: AHRI, American Quality design, ISO 9001 standard
