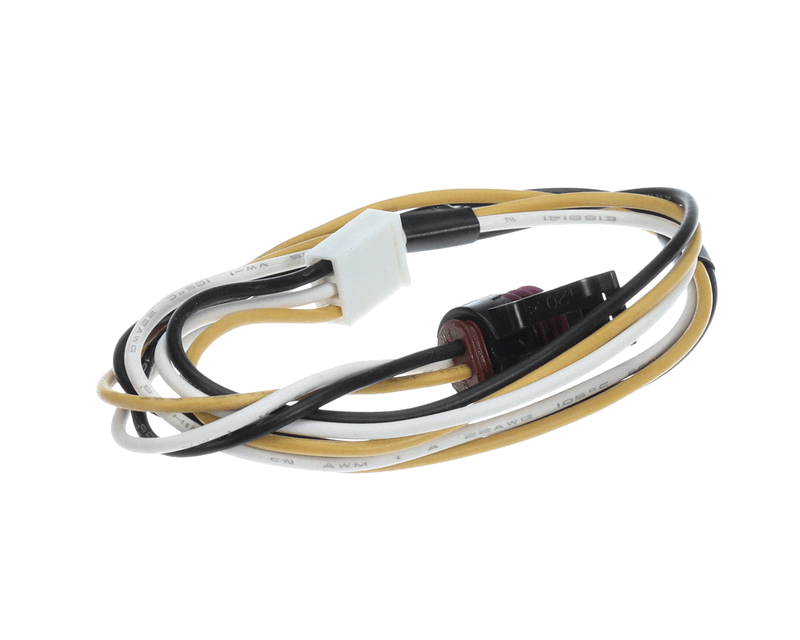

York 2549264000 Wire Harness Pressure Transducer Low Side

Product Description

The YORK 2549264000 is an OEM replacement wire harness designed for low-side pressure transducer connections in YORK HVAC systems. This harness maintains a secure, stable electrical link between the low-side pressure transducer and the system control board, ensuring accurate pressure signal transmission. Proper signal integrity at the transducer is critical for system diagnostics, refrigerant circuit monitoring, and fault detection. Weighing 0.1 pounds and measuring 4.6 inches in length, this compact harness is built to OEM fit and function standards for straightforward replacement during service calls.

This wire harness is intended for use in YORK residential and light commercial HVAC equipment where low-side pressure transducer wiring has failed, been damaged, or requires replacement as part of a broader controls repair. Licensed HVAC technicians performing refrigerant circuit diagnostics or control board servicing will encounter this harness as part of standard pressure monitoring circuit maintenance. Its compact dimensions allow installation in tight equipment compartments without modification.

Key Features

• OEM YORK replacement harness for low-side pressure transducer circuits
• Maintains accurate pressure signal transmission to the control board
• Compact form factor at 4.6 inches x 3.35 inches x 1.15 inches
• Lightweight at 0.1 pounds for easy handling during service
• Direct OEM fit eliminates need for field wiring modifications

Compatibility

Designed as an OEM-style replacement wire harness for YORK HVAC systems utilizing a low-side pressure transducer in the refrigerant circuit.

Installation Notes

Installation should be performed by a licensed HVAC technician. Before servicing any wiring or transducer connections, disconnect power to the unit at the disconnect switch or breaker. Recover refrigerant per EPA Section 608 regulations before working on refrigerant-side components if pressure transducer removal is also required. Verify connector seating is fully engaged after installation to ensure a reliable signal circuit.

Technical Specifications

• Length: 4.6 inches
• Width: 3.35 inches
• Height: 1.15 inches
• Weight: 0.1 pounds

Standard Information

• Brand: YORK
• Manufacturer Part Number: 2549264000
