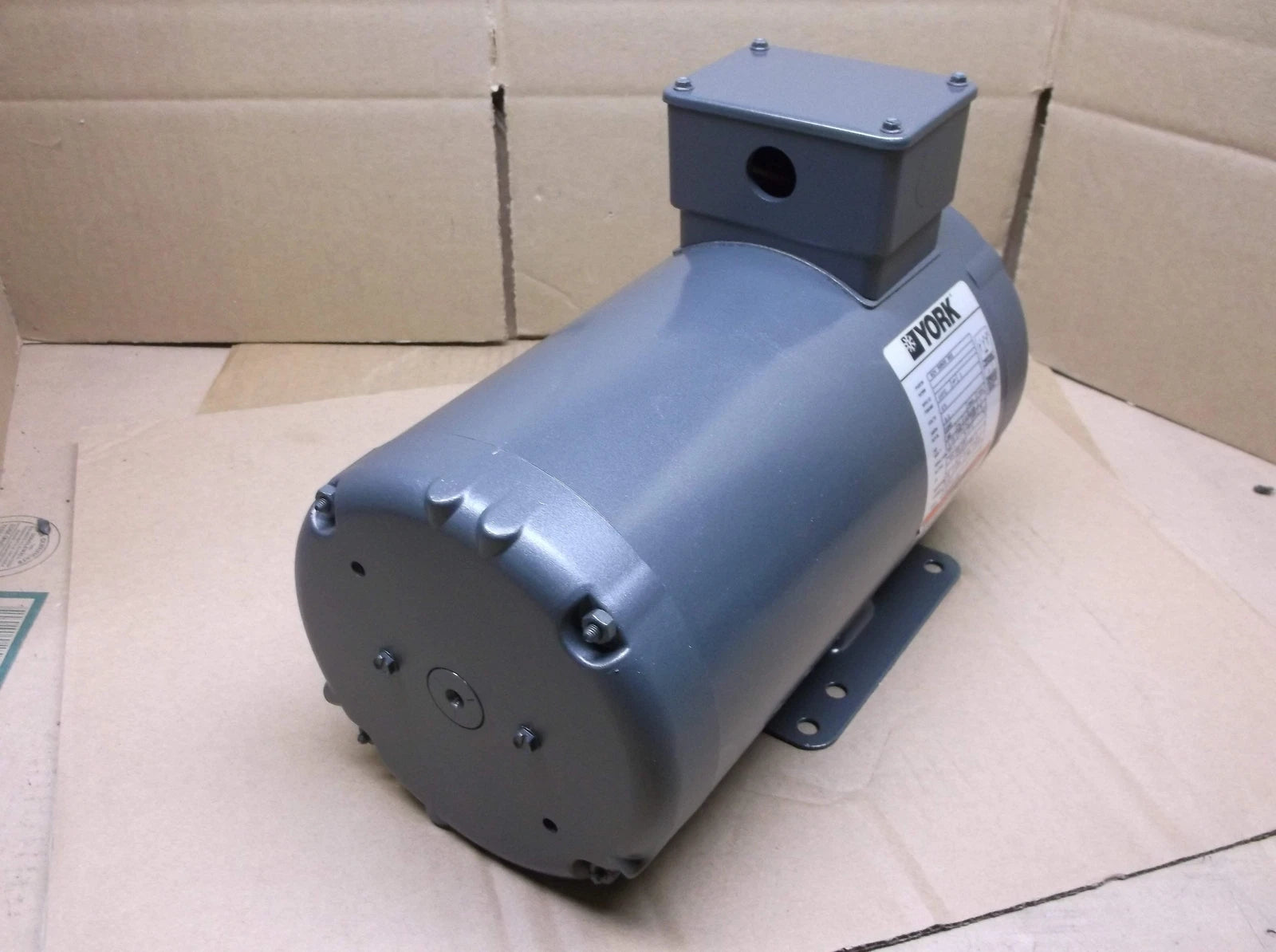

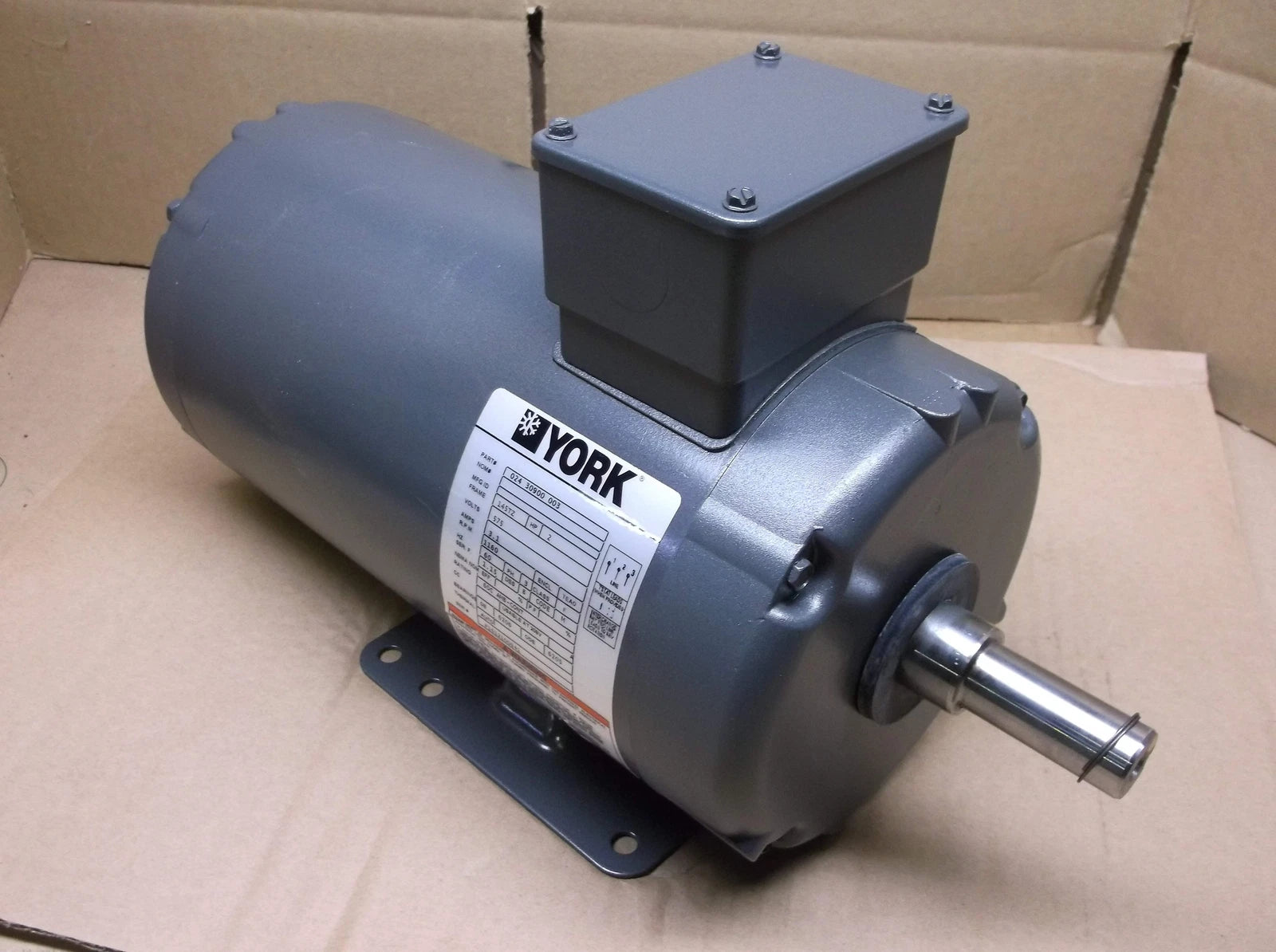

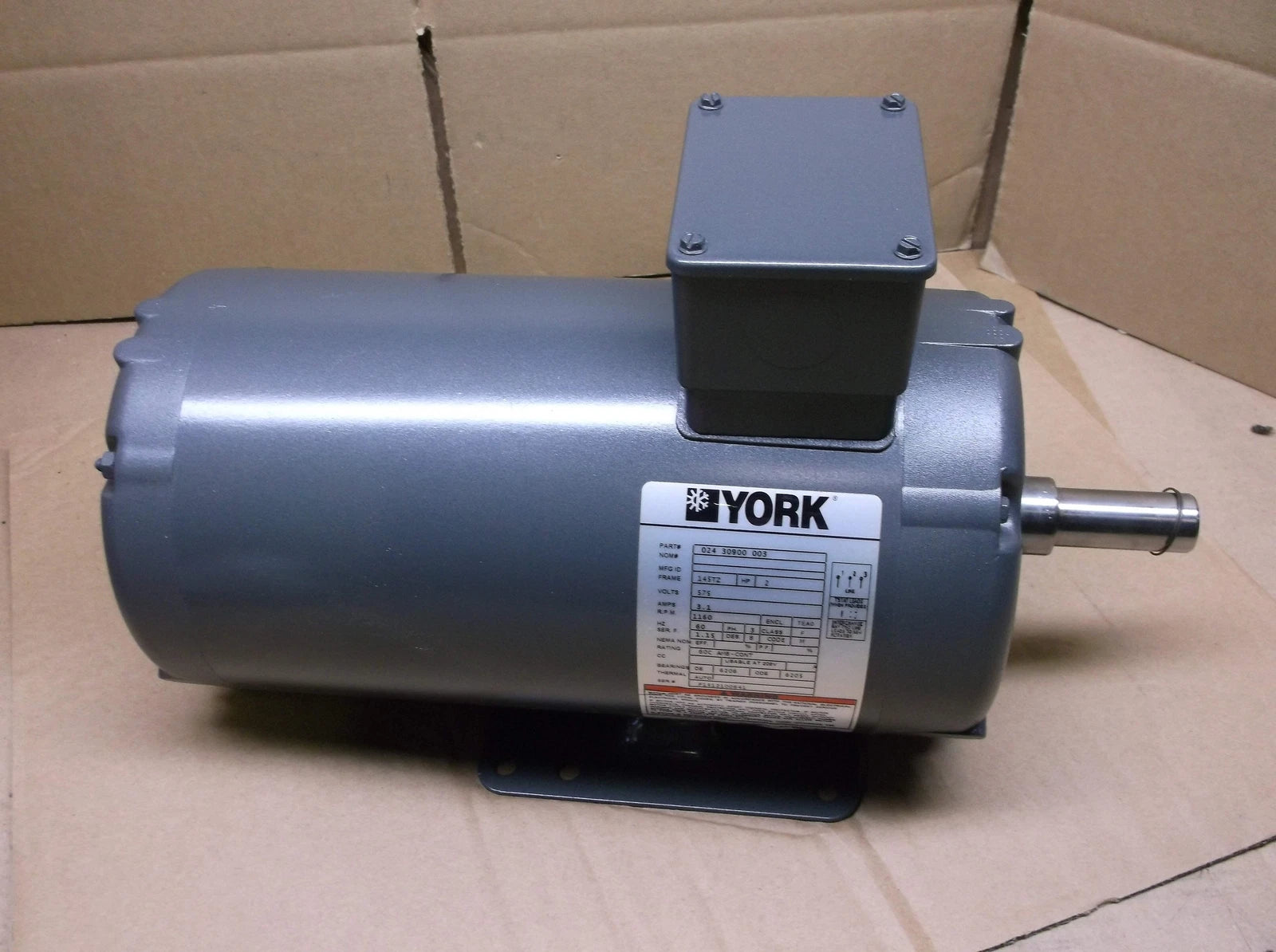

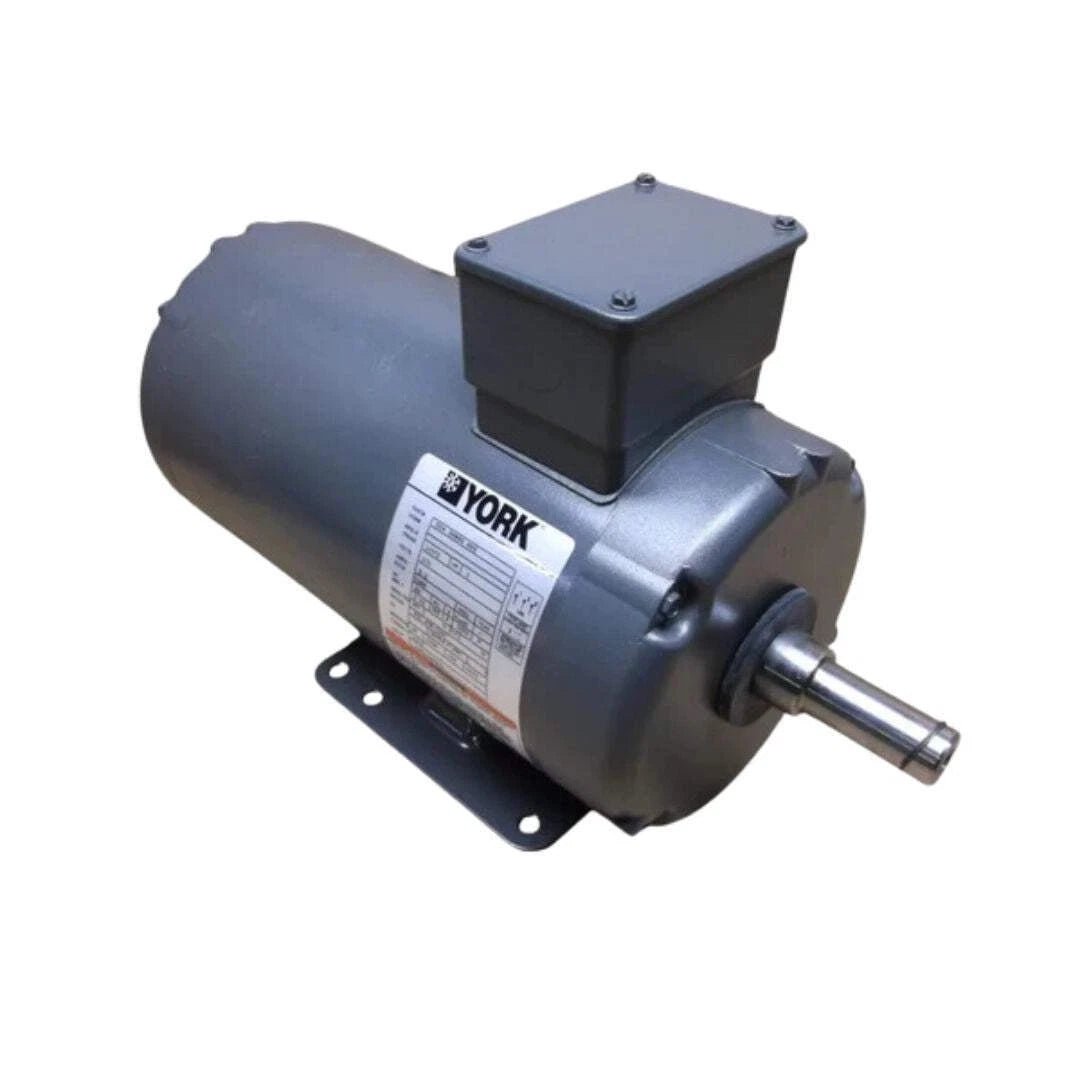

YORK 024-30900-003 2 HP Condenser Fan Motor

Product Description

The YORK 024-30900-003 is a 2 HP condenser fan motor designed for effective use in HVAC systems. This motor is essential for driving air circulation in heating, ventilation, and air conditioning units, transforming electrical energy into mechanical motion to rotate the fan blades efficiently. It features a rigid base for secure mounting and a totally enclosed air-over body design. The motor operates on a three-phase power source to ensure optimal performance.

• Horsepower: 2 HP
• Voltage: 575 V
• Rotation: Reversible

Product Highlights

This motor is suitable for a range of HVAC applications where reliability and efficiency are required.

Product Information

Standard Information

• Brand: York
• MPN: 024-30900-003

Technical Specifications

• Horsepower: 2 HP
• Voltage: 575 V
• Phase: 3
• Frequency: 60 Hz
• Current: 3.1 A
• Speed: 1160 RPM
• Mounting Type: Rigid Base
• Enclosure: Totally Enclosed Air-Over
• Rotation: Reversible
• Shaft: 7/8 Key X 2
• Weight: 56.35 Pounds
• Item Height: 13 inches
• Item Width: 14 inches
