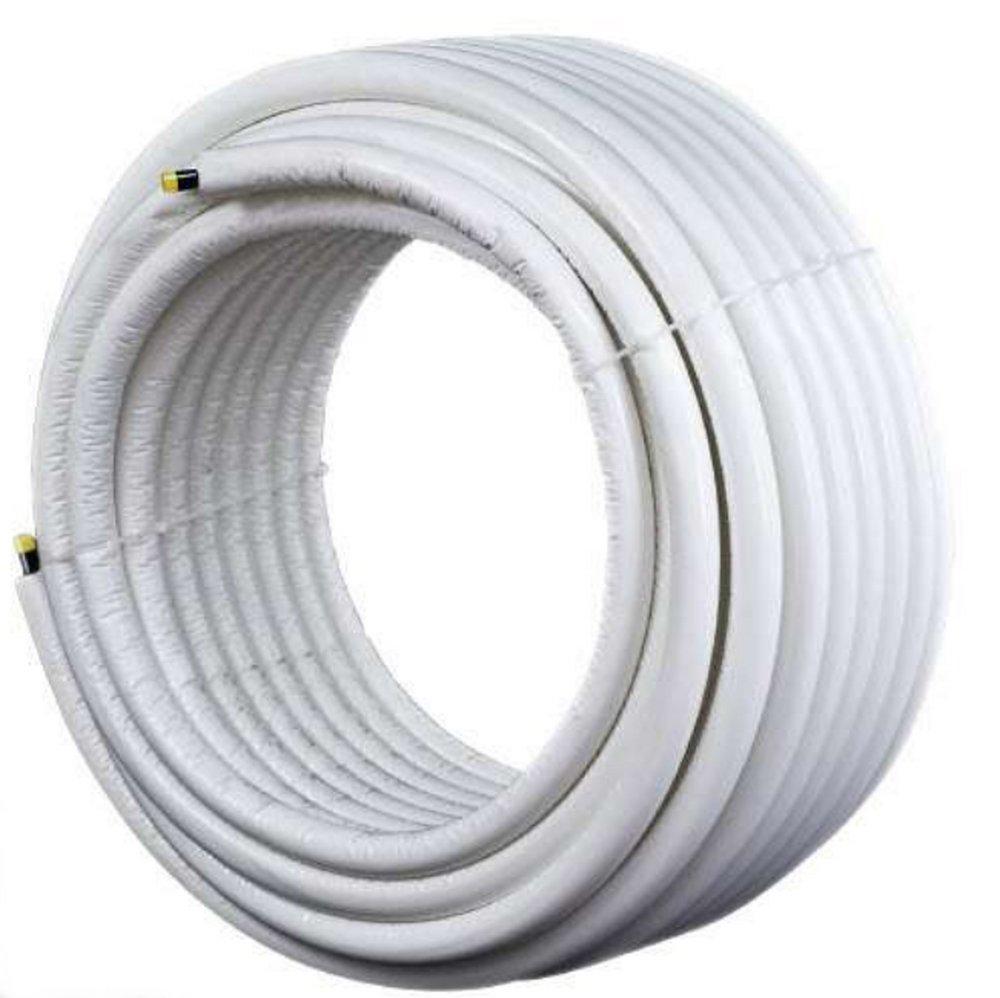

Yogapipe acr58insul200 Insulated Acr Copper Tubing 5/8 in 200 Ft

Product Description

The YOGAPIPE acr58insul200 is a single-line insulated ACR copper tube designed for refrigerant-side applications in split-system HVAC installations. The tube measures 5/8 inch in outer diameter and ships in a 200-foot coil, making it well-suited for longer runs or multi-unit jobs where cutting from a full coil reduces waste. Factory-applied insulation protects the line from condensation and heat gain, maintaining system efficiency without requiring the installer to field-wrap the suction line separately. HVAC technicians and refrigeration mechanics are the primary installers of this product.

This insulated ACR copper line is used in residential and light commercial split-system air conditioning and heat pump installations where a single suction line is required. The 200-foot coil length supports job-site flexibility, allowing technicians to serve multiple short runs or a single extended installation from one coil. It is appropriate for use wherever ACR-grade dehydrated copper tubing is specified for refrigerant service.

Key Features

• 5/8 inch outer diameter ACR copper tubing sized for common suction-line applications
• 200-foot coil length reduces the need for field splices on longer runs
• Factory-applied insulation eliminates the need for separate field wrapping of the suction line
• Single-line configuration for straightforward routing and installation
• ACR-grade copper is internally cleaned and dehydrated for refrigerant service compatibility

Compatibility

Designed as an OEM-style replacement and new-installation copper suction line for residential and light commercial split-system air conditioning and heat pump applications requiring 5/8 inch ACR tubing.

Installation Notes

Installation should be performed by a licensed HVAC technician or refrigeration mechanic following applicable mechanical codes. Recover or isolate all refrigerant from the system before cutting into any existing refrigerant circuit. Deburr and ream all cut ends before flaring or brazing to prevent debris from entering the system. Keep open tube ends capped until final connection to maintain internal cleanliness.

Technical Specifications

• Line Set Type: Single-Line Insulated
• Outer Diameter: 5/8 inch
• Length: 200 feet
• Insulated: Yes
• UPC: 628055925149

Standard Information

• Brand: YOGAPIPE
• Manufacturer Part Number: acr58insul200
