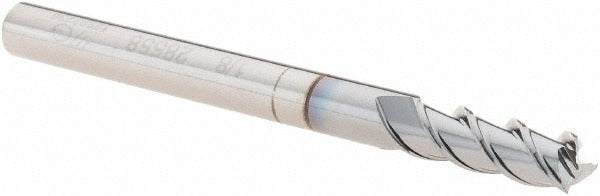

YG-1 28558TC Square End Mill 3 Flute Ticn 1/8 Inch

Product Description

The YG-1 28558TC is a 3-flute solid carbide square end mill designed for high-performance milling of non-ferrous metals. Built from micrograin carbide stock, it carries a TiCN (Titanium Carbonitride) coating that reduces friction and extends tool life in aluminum, copper, brass, and similar materials. The 45-degree helix angle promotes efficient chip evacuation and smooth cutting action. With a 1/8 inch mill diameter and 3/8 inch length of cut, this tool is well suited to fine-feature work, slotting, and profiling where precision and edge integrity are critical. Licensed machinists and CNC operators are the primary users of this tool.

This end mill fits standard 1/8 inch straight-cylindrical shank tool holders and is intended for use on CNC machining centers and manual milling machines processing non-ferrous workpieces. The right-hand cutting and right-hand flute direction make it compatible with conventional spindle setups. The regular length designation and 1-1/2 inch overall length suit it to general-purpose operations where reach requirements are moderate. It is not center-cutting, so plunge milling is not recommended without a pre-drilled entry point.

Key Features

• 3-flute, 45-degree helix spiral geometry for efficient chip evacuation in non-ferrous materials
• TiCN coating reduces friction and improves wear resistance compared to uncoated carbide
• Micrograin solid carbide construction maintains edge sharpness at higher feed rates
• Mill diameter tolerance of 0.0000 to -0.0005 inches for close-tolerance slot and profile work
• Right-hand cut and right-hand flute direction for use in standard CNC and manual mill setups
• 1/8 inch straight-cylindrical shank fits common collet and end mill holder systems

Compatibility

Designed for use with standard 1/8 inch straight-cylindrical shank tool holders on CNC machining centers and manual milling machines. Primary workpiece material is non-ferrous metal (Material Code N), including aluminum, brass, and copper alloys.

Installation Notes

Installation is performed by machinists or CNC setup technicians. Ensure the machine spindle is fully stopped and the tool holder is clean and free of chips before seating the shank. Secure the tool to the manufacturer-specified drawbar or collet torque using a calibrated torque wrench. Because this tool is not center-cutting, always pre-drill or ramp-entry into the workpiece rather than plunging directly.
