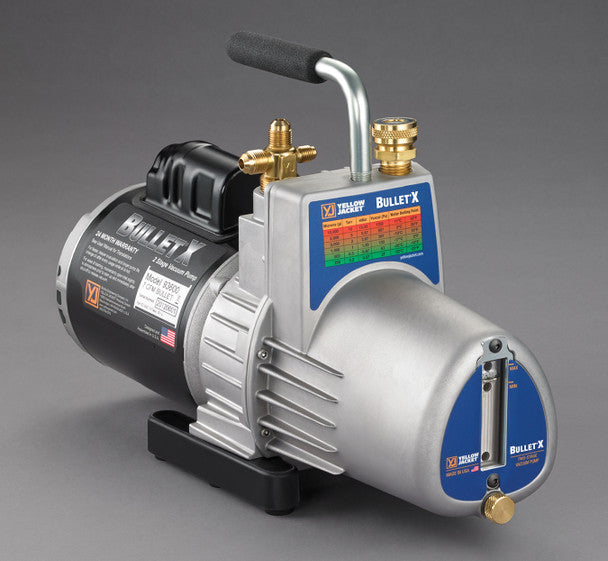

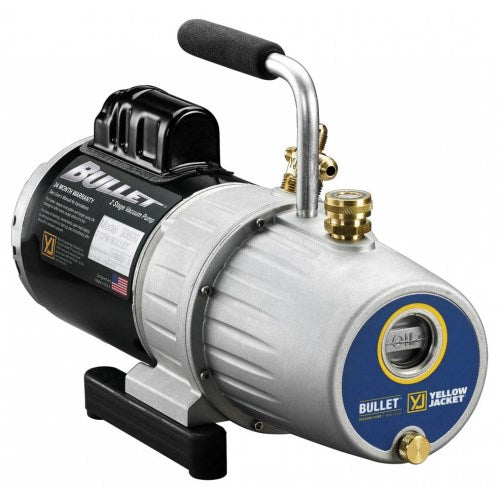

Yellow Jacket RIT-93600 BULLET X Vacuum Pump 7 CFM

Product Description

The Yellow Jacket RIT-93600 BULLET X is a vacuum pump designed for HVAC applications. It operates at 7 CFM and features a two-stage rotary vane construction. The motor runs on 115 volts at 60 Hz, providing reliable performance. It achieves a vacuum rating of 25 microns.

• Two-stage rotary vane design
• Includes internal intake check valve
• Wide mouth oil reservoir for easy filling and exhaust

Product Highlights

This pump is suitable for vacuuming refrigerants and offers ease of use with features designed for maintenance.

Product Information

Standard Information

• Brand: Yellow Jacket
• Manufacturer: Ritchie Engineering Inc.

Technical Specifications

• MPN: RIT-93600
• Horsepower Rating: 1/2 HP
• RPM: 1725
• CFM: 7
• Vacuum Rating: 25 microns
• Oil Capacity: 28 oz.
• Dimensions: 17.5 L x 12 W x 6 H inches
• Weight: 31.6 lbs
• Voltage: 115 V
• Number of Stages: Two-stage rotary vane
