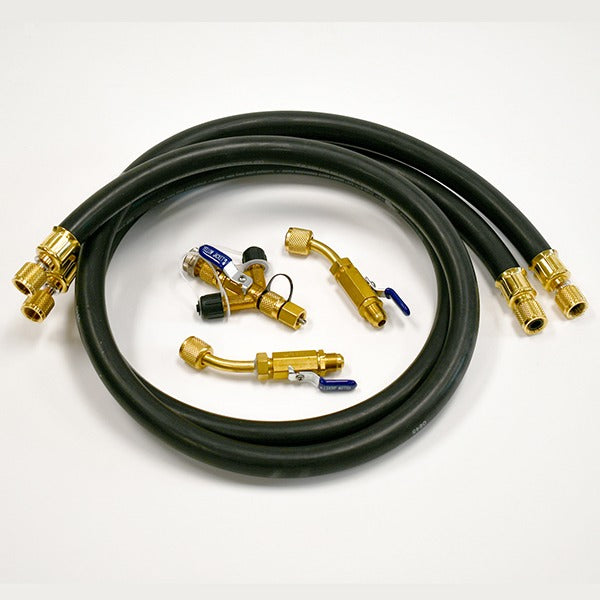

Yellow Jacket 93916 Deluxe Maxflow Evacuation Kit

Product Description

The YELLOW JACKET 93916 is a deluxe evacuation kit designed to accelerate the system evacuation process for HVAC and refrigeration work. The kit centers on a Vacuum Y fitting paired with a RealTorque Core Removal Tool (CRT) and 12 hoses, enabling technicians to pull a deep vacuum from multiple access points simultaneously. This configuration is engineered to significantly reduce evacuation time compared to single-port methods. The 93916 version is distinguished by its 45-degree ball valves, which can improve hose routing in tight equipment spaces. Licensed HVAC technicians performing system commissioning, refrigerant recovery, or leak-repair recharges are the primary installers.

This kit is suited for residential and light commercial HVAC and refrigeration applications where fast, thorough evacuation is required before refrigerant charge. The 45-degree ball valve configuration makes it a strong fit for installations where straight valve access is obstructed by cabinet panels, line sets, or adjacent components. Technicians who prefer the straight ball valve version should reference kit 93914 instead. The multi-hose design supports core removal under vacuum, reducing moisture and non-condensable gas contamination in the system.

Key Features

• Includes Vacuum Y fitting, RealTorque Core Removal Tool (CRT), and 12 hoses in a single kit
• 45-degree ball valves allow flexible hose routing in confined equipment bays
• Multi-port evacuation setup enables simultaneous access for faster system pump-down
• Core removal tool allows Schrader core extraction while under vacuum to minimize contamination
• Kit format keeps all evacuation components organized and ready for field use

Compatibility

Designed for use with standard HVAC and refrigeration service ports in residential and light commercial systems. Technicians requiring straight ball valves should reference YELLOW JACKET kit 93914.

Installation Notes

Installation and use should be performed by a licensed HVAC technician familiar with refrigerant handling regulations under EPA Section 608. Before connecting the evacuation kit, confirm the system is fully recovered of refrigerant if required by the service procedure. Verify all hose connections are hand-tight and leak-free before starting the vacuum pump. Do not operate the core removal tool unless the system is already under vacuum to prevent refrigerant or air ingestion.
