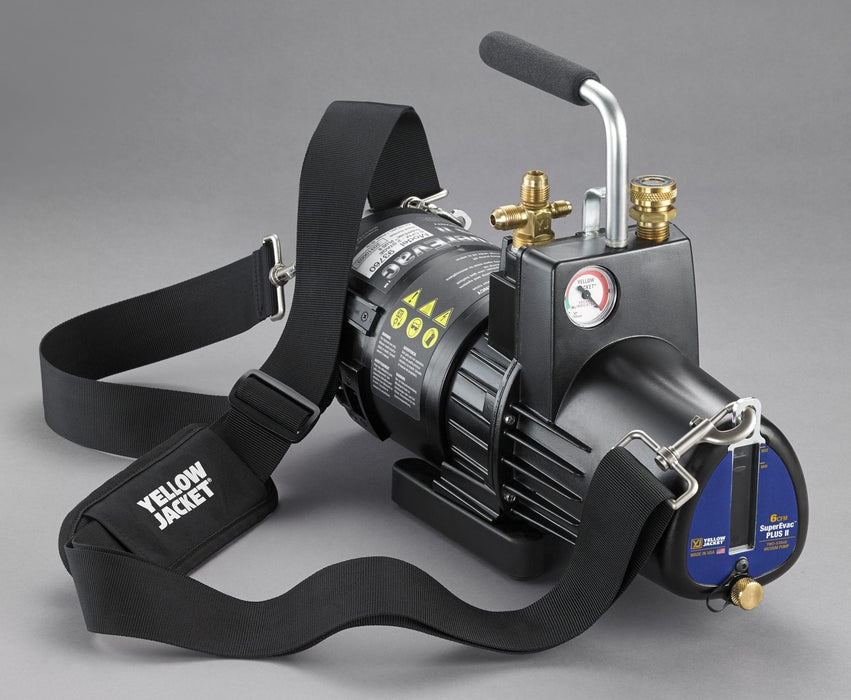

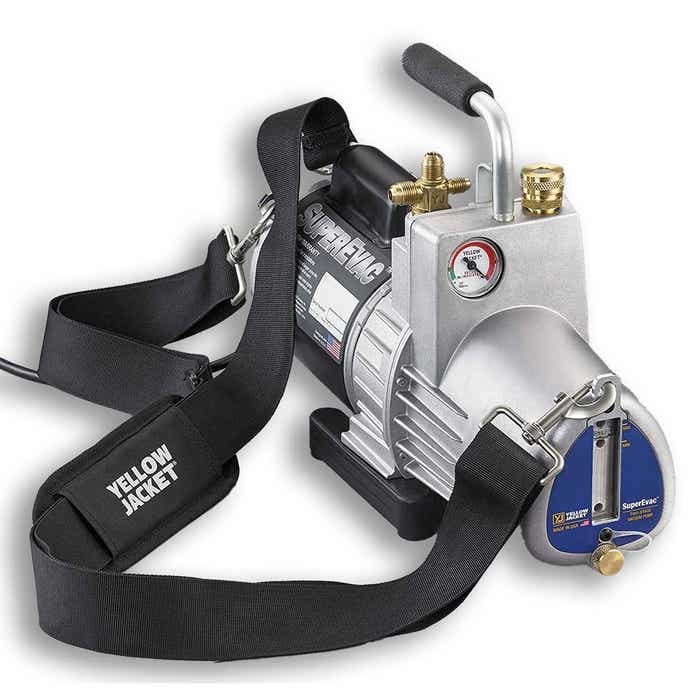

Yellow Jacket 93780 SuperEvac Plus II Vacuum Pump

Product Description

The Yellow Jacket 93780 SuperEvac Plus II Vacuum Pump is a two-stage rotary vane pump designed for efficiency and durability. It features a Brushless DC motor and is rated to achieve 15 microns, making it suitable for low voltage applications. This vacuum pump is equipped with heavy-duty rotors and bearings, a gas ballast valve, and an intake filter for optimal performance.

• Includes a built-in vacuum gauge
• Brass oil drain for easy maintenance
• Works with A2L systems

Product Highlights

The Yellow Jacket 93780 is a reliable choice for HVAC professionals who require a robust and dependable vacuum pump.

Product Information

Standard Information

• Brand: Yellow Jacket
• MPN: 93780

Technical Specifications

• Intake: 1/2 inch, 3/8 inch, 1/4 inch Male flare
• Oil capacity: 28 oz.
• Dimensions: 17.5 inches L x 6 inches W x 11.5 inches H
• Weight: 26.8 lbs. (12.2 kg)
• Free air displacement: 8 CFM
• Number of stages: 2-stage rotary vane
• Field blankoff: 15 microns
• Motor: BLDC 1/2 hp
• Input Voltage: 100-127V/220-240V, 50-60 Hz; factory set at 115V
