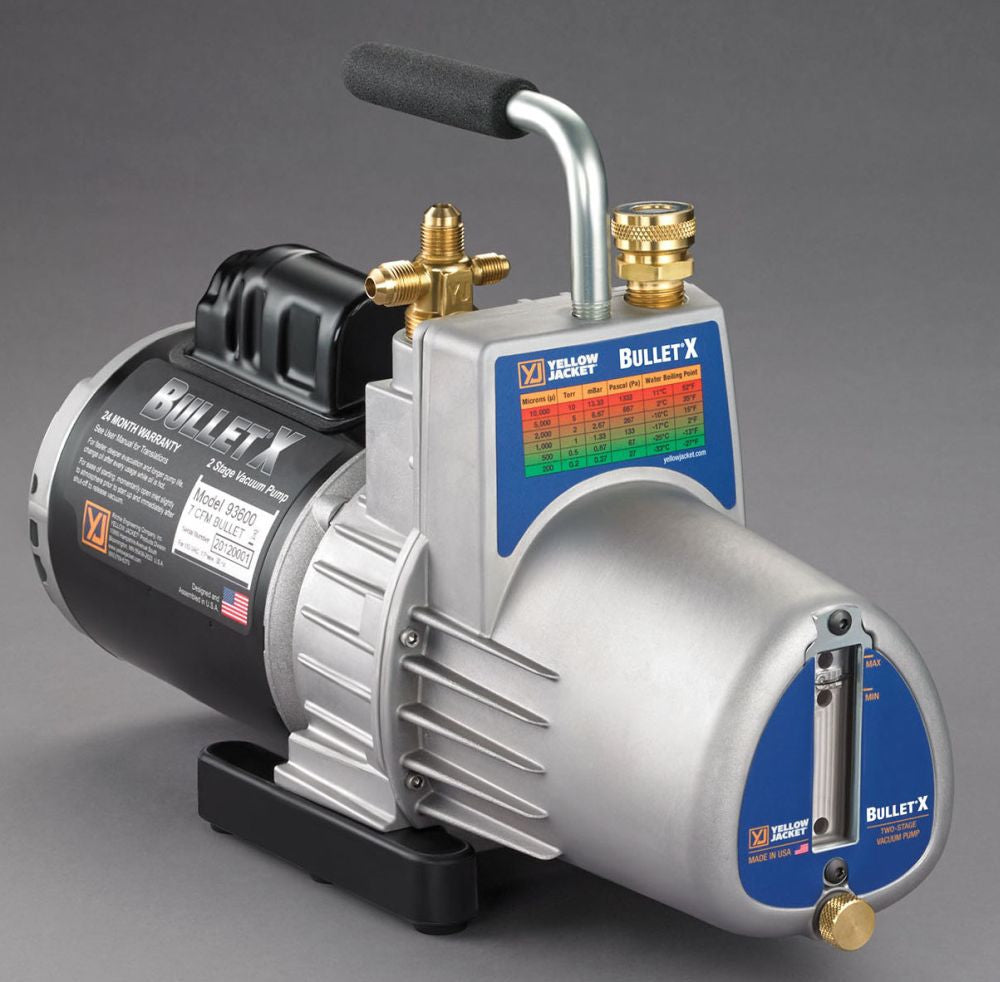

Yellow Jacket 93600 Vacuum Pump 1/2 HP 7 CFM 28 Oz Oil

Product Description

The Yellow Jacket 93600 is a vacuum pump designed for HVAC applications. This two-stage rotary vane pump is oil-sealed and provides a flow rate of seven cubic feet per minute. It operates on 115 volts and has a power rating of one half horsepower. The unit can pull down to twenty-five microns, ensuring a deep vacuum that helps to protect HVAC systems from contaminants and non-condensable gases.

• Two-stage rotary vane design
• Oil reservoir with 28 oz capacity
• Power cord length of six feet

Product Highlights

This vacuum pump is ideal for HVAC technicians who require reliable performance in removing moisture and air from refrigeration systems.

Product Information

Standard Information

• Brand: Yellow Jacket
• MPN: 93600

Technical Specifications

• Power Rating: 1/2 HP
• Input Supply: 115 Volt AC 60 Hz
• Flow Rate: 7 CFM
• Temperature Rating: 40 Deg C
• Overall Dimensions: 16.25 Inch Length x 6 Inch Width x 11.5 Inch Height
• Oil Capacity: 28 Ounce
• Field Blank-Off: 25 Micron
• Speed Rating: 1725 RPM
• Suction Size: 1/4 Inch x 3/8 Inch x 3/8 Inch
