Yellow Jacket 93590 superevac two-stage vacuum pump 1/2 hp 11 cfm 115 vac 60 hz 93790yellow

Product Description

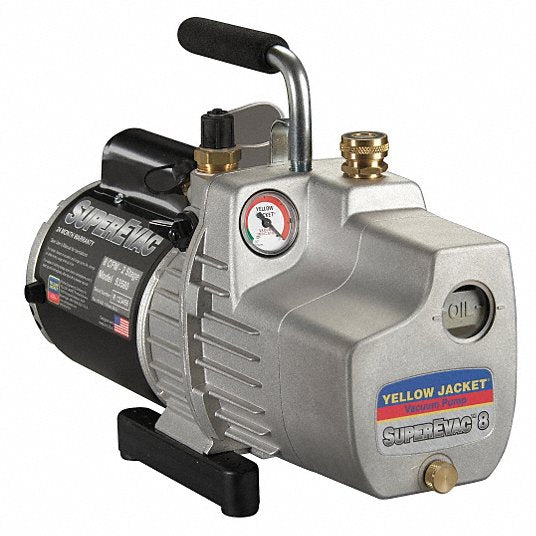

The YELLOW JACKET 93590 SuperEvac Two-Stage Vacuum Pump is a 1/2 hp unit designed for efficient system evacuation. It features an isolation valve for oil changes without vacuum loss and a built-in vacuum indicator gauge. With an 11 CFM displacement and a 15 micron ultimate vacuum, this pump ensures thorough evacuation for various refrigerant types. Its wide-mouth oil reservoir port allows for easy filling and doubles as an exhaust.

• Isolation valve for oil changes without losing vacuum in the system.
• Built-in vacuum indicator gauge for monitoring vacuum levels.
• Wide-mouth oil reservoir port for easier, cleaner filling and exhaust.

Product Highlights

Efficient 11 CFM two-stage vacuum pump with 15 micron ultimate vacuum, 1/2 hp motor, and 115 VAC 60 Hz operation.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 93590
• Country of Origin: United States

Technical Specifications

• Replacement MPN: 93790YELLOW
• CFM Displacement: 11
• Input Voltage: 115 VAC
• Frequency: 60 Hz
• Horsepower: 1/2 hp
• Stages: Two-Stage
• Ultimate Vacuum: 15 microns or better
• A2L Compatibility: Not A2L Compatible
• Drive Type: Direct Drive
• Phase: Single
• Current: 10 A
• Cord Length: 6 ft
• Inlet Port Connection Size 1: 1/4 in
• Inlet Port Connection Type 1: Flare
• Inlet Port Connection Thread Direction 1: Right-Hand
• Inlet Port Connection Size 2: 1/2 in
• Inlet Port Connection Type 2: Flare
• Inlet Port Connection Thread Direction 2: Right-Hand
• Inlet Port Connection Thread Direction 3: Right-Hand
• Reservoir Port Connection Thread Direction: Right-Hand
• Drain Port Connection Thread Direction: Right-Hand
• Oil Capacity: 44 oz
• Gas Ballast: Included
• Included Accessories: Blank Off Check Valve, Oil
• Refrigerant Compatibility: R-11; R-113; R-1130; R-1132; R-1132A; R-114; R-115; R-1150; R-116; R-12; R-1224YD; R-123; R-1233ZD; R-1234YF; R-1234ZE; R-124; R-125; R-1270; R-12B1; R-13; R-1336MZZ; R-134A; R-13B1; R-13I1; R-14; R-141B; R-142B; R-143A; R-14E; R-152A; R-161; R-170; R-21; R-218; R-22; R-227; R-227EA; R-23; R-236FA; R-245FA; R-25; R-290; R-30; R-31; R-32; R-40; R-400; R-400A; R-401A; R-401B; R-401C; R-402A; R-402B; R-403A; R-403B; R-404A; R-405A; R-406A; R-407A; R-407B; R-407C; R-407D; R-407E; R-407F; R-407G; R-407H; R-407I; R-408A; R-409A; R-409B; R-41; R-410A; R-410B; R-411A; R-411B; R-412A; R-413A; R-414A; R-414B; R-415A; R-415B; R-416A; R-417A; R-417B; R-417C; R-418A; R-419A; R-419B; R-420A; R-421A; R-421B; R-422A; R-422B; R-422C; R-422D; R-422E; R-423A; R-424A; R-425A; R-426A; R-427A; R-427C; R-428A; R-429A; R-430A; R-431A; R-432A; R-433A; R-433B; R-433C; R-434A; R-435A; R-436A; R-436B; R-436C; R-437A; R-438A; R-439A; R-440A; R-441A; R-442A; R-443A; R-444A; R-444B; R-445A; R-446A; R-447A; R-447B; R-448A; R-448B; R-449A; R-449B; R-449C; R-450A; R-451A; R-451B; R-452A; R-452B; R-452C; R-453A; R-454A; R-454B; R-454C; R-455A; R-456A; R-457A; R-457B; R-457C; R-458A; R-459A; R-459B; R-460A; R-460B; R-460C; R-461A; R-462A; R-463A; R-464A; R-465A; R-466A; R-467A; R-468A; R-468B; R-468C; R-469A; R-470A; R-470B; R-471A; R-472A; R-472B; R-473A; R-474A; R-475A; R-476A; R-50; R-500; R-501; R-502; R-503; R-504; R-505; R-506; R-507; R-507A; R-508A; R-508B; R-509A; R-510A; R-511A; R-512A; R-513A; R-513B; R-514A; R-515A; R-515B; R-516A; R-600; R-600A; R-601; R-601A; R-610; R-611; R-620; R-630; R-631; R-702; R-704; R-717; R-718; R-720; R-728; R-732; R-740; R-744; R-744A; R-764; R-A11A; R-C318; R-E170; R-IS89; SP22
• Body Material: Aluminum
• Calibration Certificate Type: Not Certified
