YELLOW JACKET 78760 High Temperature Pressure Control Hose 60 Inch 1/4 Inch Straight x 90 Degree

Product Description

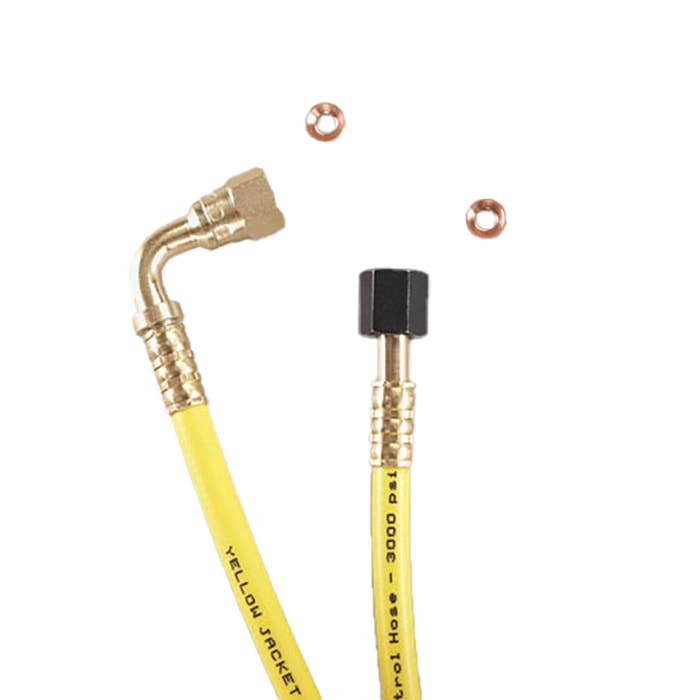

The YELLOW JACKET 78760 is a pressure control hose designed for high-temperature applications. It features a length of 60 inches and is made with a thermoplastic polymer inner tube and cover. This construction helps prevent vibration failures often seen with copper capillary tubes. The hose includes 1/4 inch straight x 90 degree hex style fittings with copper gaskets, which provide reliable sealing in challenging environments.

• 1/4 inch straight x 90 degree hex style fittings with copper gaskets
• Operates from -49 degrees to 266 degrees Fahrenheit (-44 degrees to 130 degrees Celsius)
• Burst pressure of 4000 psi (276 bar) and working pressure of 800 psi (55 bar)

Product Highlights

Reliable high-temperature performance for demanding settings.

Product Information

Standard Information

• Hose Length: 60 inches
• Fittings: 1/4 inch straight x 90 degree hex style fittings with copper gaskets

Technical Specifications

• Minimum Burst Pressure: 4000 psi (276 bar)
• Maximum Working Pressure: 800 psi (55 bar)
• Operating Temperature: -49 degrees to 266 degrees Fahrenheit (-44 degrees to 130 degrees Celsius)
• Minimum Bend Radius: 4 inches (102mm)
