Yellow Jacket 78724 STR X 90@ PR CONTR HOSE X 24

Product Description

The Yellow Jacket 78724 is a pressure control hose designed for high performance. The hose is made from thermoplastic polymer for durability and resistance to vibration issues often found in copper capillary tube installations.

• Operating temperature range of -49 degrees Fahrenheit to 266 degrees Fahrenheit.
• Minimum burst pressure of 4000 psi and a maximum working pressure of 800 psi.
• Reinforced with a polyester braid for added strength.

Product Highlights

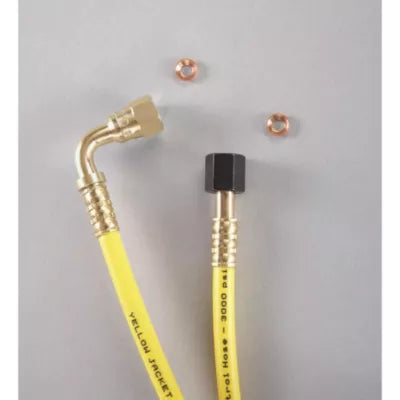

This hose features hex style fittings with one-fourth SAE thread, making it compatible with common refrigerants. The bright yellow color enhances visibility within the system.

Product Information

Standard Information

• Brand: Yellow Jacket
• Part Number: 78724

Technical Specifications

• Weight: 0.2 pounds
• Length: 24 inches
• Composition: Rubber, Polymer, Polyester, Steel, Copper
• Connection Size: 1/4 inches
• Burst Pressure: 4000 psi (276 bar)
• Working Pressure: 800 psi (55 bar)
• Country of Origin: USA
• Operating Temperature Range: -49 to 266 degrees Fahrenheit
