Product Information

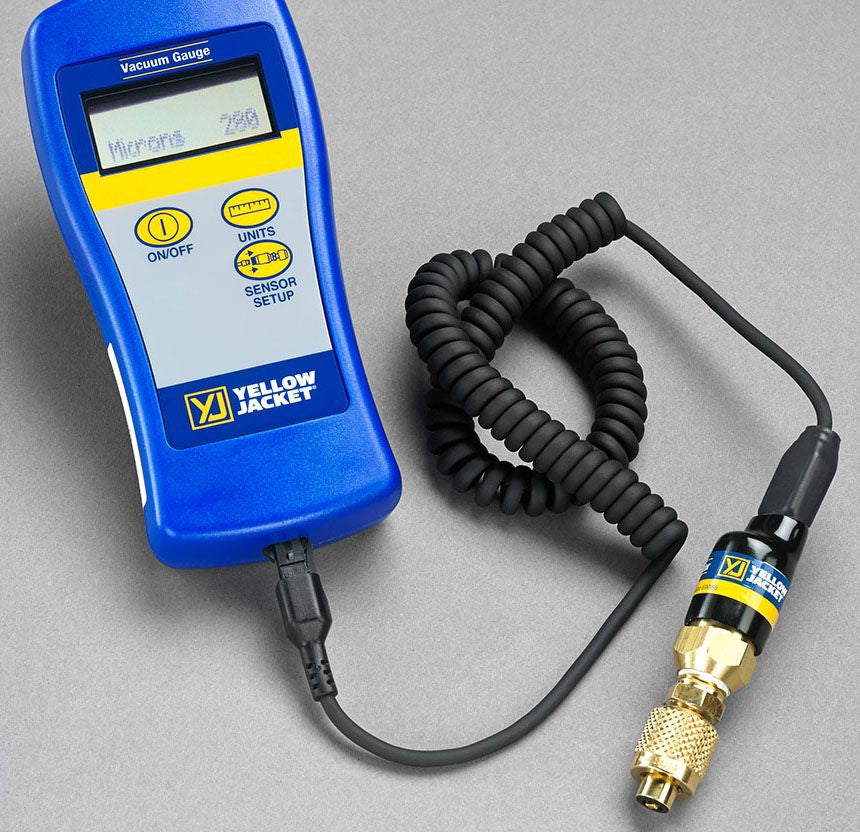

This easy-to-use gauge shows that air and moisture have been removed from the system.
Simple push of a button changes the display readout between 7 units of measurement.
Each displays from atmosphere to 10 microns (bar graph indication above 25000 microns) of vacuum to let you know that your vacuum pump is clean and performing properly.
If the sensor gets dirty, simply plug a new sensor into the gauge, run through a quick calibration process and be back on the job within minutes.
Features
Unique patented thermal conductivity sensor automatically compensates for temperature
Replaceable, cleanable, plug-in sensor (Part no 69087) handles 450 psi positive pressure
Displays seven different units of vacuum (microns, milli
Torr, Torr, millimeters of mercury, millibar, kilo
Pascal and Pascal)
12 in coiled sensor cord stretches to 24 in for easy reach, connectivity and readability of display
Low battery indication
Automatic shutoff after 20 min
Calibration standards traceable to the national Institute of standards and technology (NIST)
Approximately 25 hr continuous battery life
Accuracy +/-20 percent of reading
3 sec response time
6 in power cord
+/- 15 percent of reading accuracy
4-1/2 x 5-1/2 x 1-1/2 in dimension
9 in sensor cable
Automatic calibration
Item Dimensions Lx
Wx
H: 13 x 9 x 3 inches
