Yellow Jacket 67068 yjack mano® wireless dual port manometer

YELLOW JACKET
Brand: YELLOW JACKET
SKU: 67068
Availability: In Stock

Ships same day if ordered by 12 pm
$267.19
$267.19
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

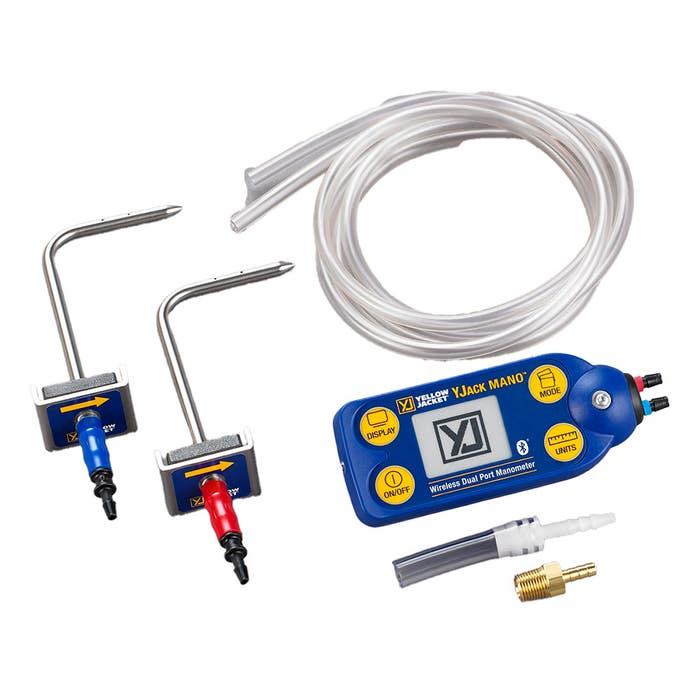

The YELLOW JACKET 67068 YJACK MANO® Wireless Dual Port Manometer takes accurate static pressure measurements up to +/- 80 inches of water column. It measures pressure drop across a filter or Total External Static Pressure (TESP) with included static pressure tips. It also measures gas pressure at the regulator inlet and outlets with the 1/8” NPT fitting or slide gas adapter.

  • Wireless static pressure measurements up to +/- 80 inches of water column
  • Accuracy & Resolution: +/- 0.03 from 0 to 2 inWC, +/- 1.5% full scale from 2 to 80 inWC, 0.01 inWC resolution
  • Accurately measure pressure drop across a filter or Total External Static Pressure (TESP) with the included static pressure tips

Product Highlights

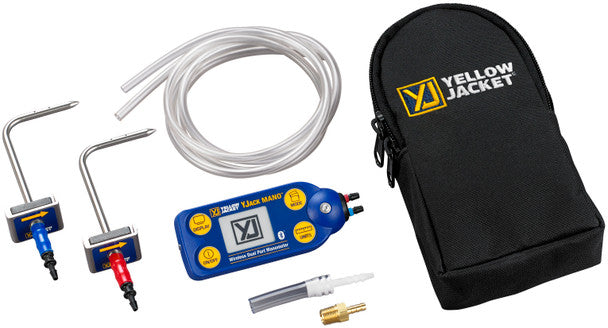

The YJACK MANO® features an integrated display, a rotating mounting magnet, and is compatible with the YJACK VIEW® app. A soft case is included.

Product Information

Standard Information

  • Brand: YELLOW JACKET
  • Manufacturer Part Number: 67068
  • Country of Origin: USA
Technical Specifications
Accuracy & Resolution
+/- 0.03 from 0 to 2 inWC, +/- 1.5% full scale from 2 to 80 inWC, 0.01 inWC resolution
Display Temperature
32°F to 104°F (0°C to 40°C)
Operating Temperature
6°F to 145°F (-21°C to 63°C)
Storage Temperature
-22°F to 149°F (-30°C to 65°C)
Battery Life
Up to 280-hour battery life with power-saving mode (2x AAA included)
Measurement Type
Static Pressure
Port Barb Fitting
For 1/8" ID tubing
Static Pressure Measurement Range
+/- 80 inWC
Static Pressure Measurement Accuracy
+/- 0.03 from 0 to 2 inWC, +/- 1.5%FS from 2 to 80 inWC
Units of Measure
inWC, mmWC, mbar, psi, Pa
Auto-Off Timer
Adjustable from 15 minutes to never
Bluetooth
4.2 compliant low energy radio
Signal range
400' (121 m) line of sight
Brand
YELLOW JACKET
Model
67068
MPN
67068
Features
Wireless
UPC
0686800670683
Working Temperature
32 to 104 deg F
Standard Approvals
Bluetooth 4.2 compliant
