YELLOW JACKET 67001 ManTooth Wireless Digital P/T Gauge

Product Description

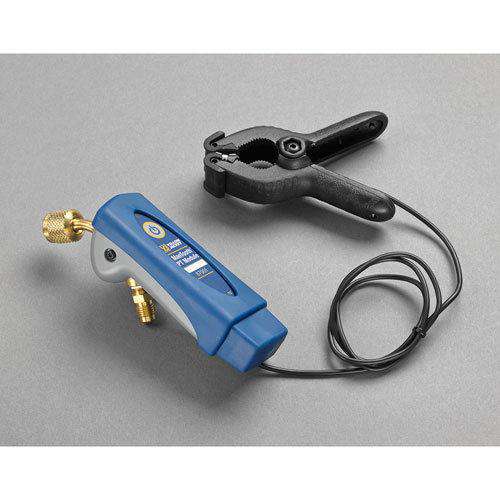

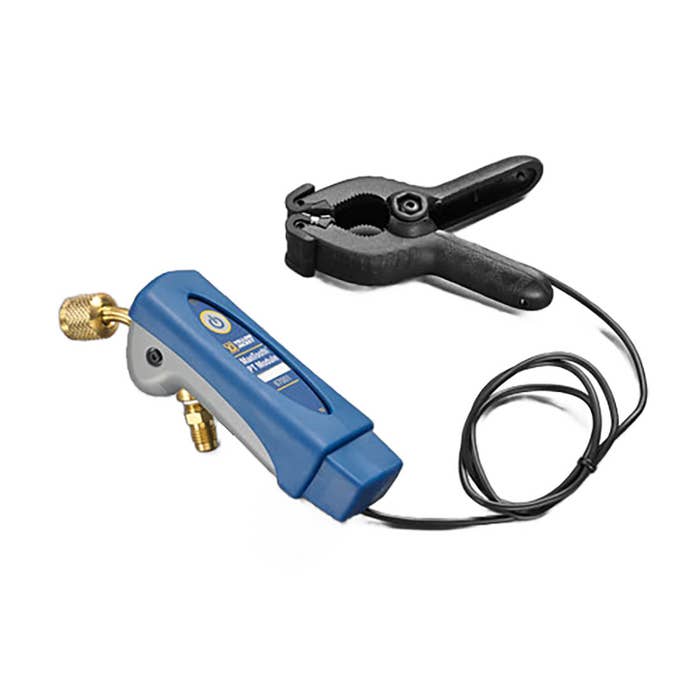

The YELLOW JACKET 67001 ManTooth Wireless Digital Pressure/Temperature Gauge provides a wireless connection to smart devices. This gauge tests systems without the loss of refrigerant, eliminating the need for hoses or manifolds. The ManTooth RSA app calculates and displays system pressures, temperatures, superheat, and subcooling accurately. Included with this gauge is a temperature probe clamp and a USB cable.

• Wireless connection to devices such as iPhone, iPad, and Android.
• Built-in Schrader ports facilitate refrigerant charge adjustments.
• Rechargeable lithium polymer battery for over 10 hours of use.

Product Highlights

This device is essential for HVAC professionals, allowing easy monitoring of systems without manual intervention.

Product Information

Standard Information

• Brand: YELLOW JACKET
• MPN: 67001

Technical Specifications

• Pressure Sensing Resolution: 0.1 psi, 0.1 bar, 1 kPa, 0.001 MPa, 0.01 kg/cm^2
• Pressure Sensing Accuracy: 0.5% of full scale at 25°C; 1% of full scale from 55°F to 130°F; 2% of full scale from -40°F to 248°F
• Working Pressure: 0-700 psia (48.3 bar)
• Proof Pressure: 1000 psia
• Burst Pressure: 1500 psia
• Temperature Sensor Range: -40°F to 266°F (-40°C to 130°C)
• Temperature Display Resolution: 0.1°F or °C
• Weight: 0.5 lbs (225 grams)
• Dimensions: 6 long x 1.6 wide x 2.3 thick (15.3 x 4 x 5.8 cm)
• Battery Life: 10+ hours continuous usage
• Refrigerant Database: 98 NIST refrigerant profiles included; upgradeable
