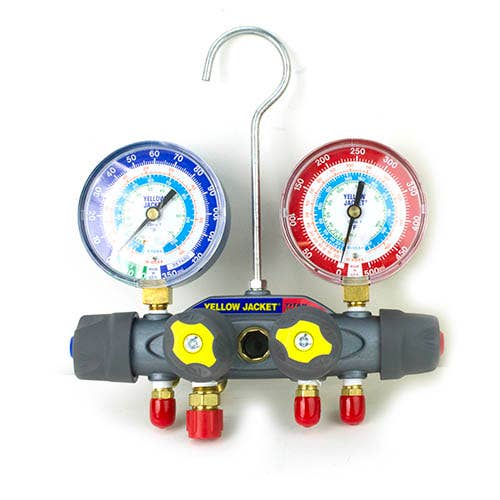

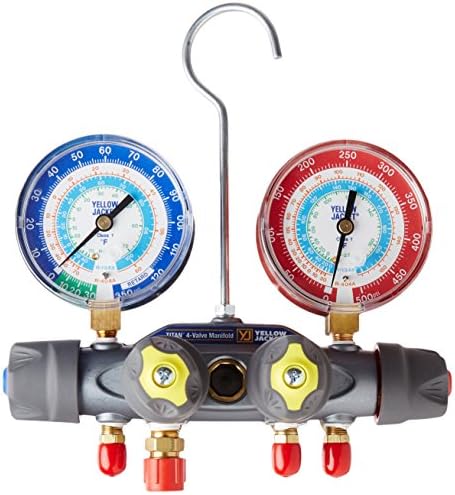

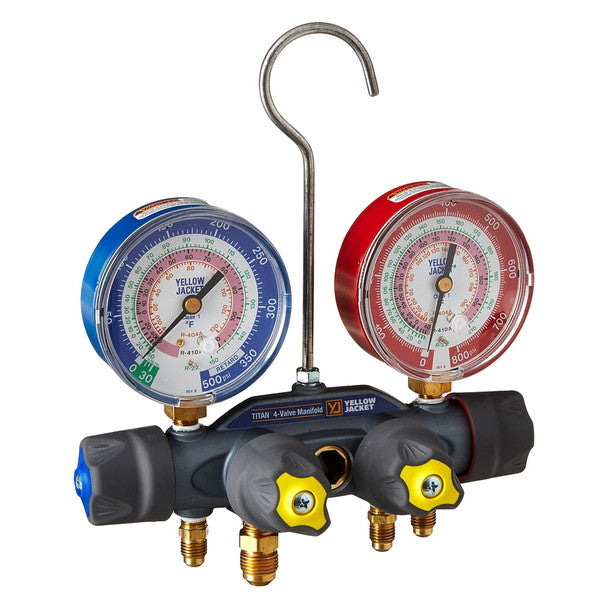

Yellow Jacket 49983 Titan 4-Valve Manifold

Product Description

The YELLOW JACKET 49983 Titan 4-Valve Manifold is a mechanical gauge set designed for HVAC and refrigeration systems. Featuring a forged aluminum alloy body, this unit offers lightweight handling and durability for repeated use. Its 4-valve design and 3/8 inch vacuum port facilitate efficient diagnostics, evacuation, and charging. It is compatible with R-22, R-134A, and R-404A refrigerants, making it suitable for various applications.

• Fourth hose enables connection to hi-/lo-sides, refrigerant tank, and recovery unit or vacuum pump for diagnostics, evacuation, and charging without switching hoses.
• 3/8 inch Vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings are 1/4 inch).
• Large, easy-to-read 3-1/8 inch steel case red and blue, 1% accuracy (Class 1) gauges.

Product Highlights

Lightweight forged aluminum alloy body ensures durability and ease of use for repeated applications.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 49983
• Country of Origin: USA

Technical Specifications

• Brand: Yellow Jacket
• Product Type: Mechanical Manifold Gauge Set
• Body Material: Forged Aluminum Alloy
• Refrigerant Compatibility: R-22 / R-134A / R-404A
• Number of Valves: 4
• Vacuum Port Size: 3/8 in
• Gauge Accuracy: +/-1.00%
• High Side Pressure Range: 0 to 500 psig
• Low Side Pressure Range: 30 in Hg to 350 psi
• Application Type: Air Conditioning and Stationary Refrigeration
• Pressure Units Measured: psi
• Temperature Units Measured: F°
• Display Type: Analog
• Gauge Type: High Side/Low Side
• Gauge Fill: Dry
• Gauge Diameter: 3-1/8 in
• Display Illumination: Non-Illuminated
• High Side Pressure Minimum: 0 psi
• High Side Pressure Maximum: 500 psi
• Low Side Pressure Minimum: 30 in Hg
• Low Side Pressure Maximum: 350 psi
• Manifold Port Connection Size: 3/8 in
• Manifold Port Connection Gender: Male
• Manifold Port Connection Type: SAE
• Manifold Port Connection Thread Direction: Right-Hand
• Vacuum Port Connection Gender: Male
• Vacuum Port Connection Type: SAE
• Vacuum Port Connection Thread Direction: Right-Hand
• Hose Connection Thread Direction: Right-Hand
• Pressure Resolution: 5 psi
• Temperature Resolution: 1 °F
• Vacuum Port Included: Vacuum Port Included
• Sightglass Included: Sightglass Included
• Gauge Boots Included: Boot Not Included
• A2L Compatibility: Not A2L Compatible
• Series: Titan
• Adjustment Method: Lever
• Adjustment Material: Plastic
• Calibration Certificate Type: Not Certified
• Gauge Color: Red/Blue
• Other Fittings Size: 1/4"
• Manifold and Hose Holder Fittings: 1/4"-3/8"-1/4"-1/4"
