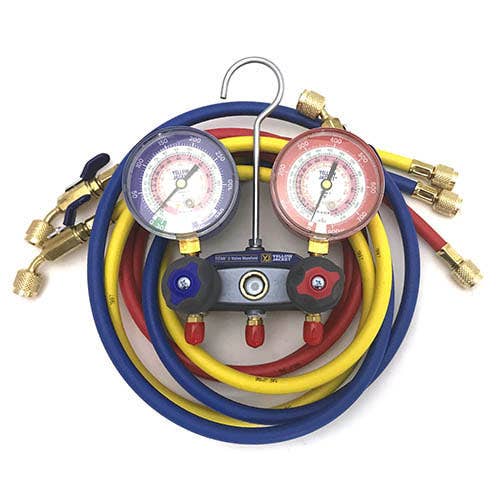

Yellow Jacket 49868 2-valve Manifold R-410A R-404A R-22 60in Hoses

Product Description

The YELLOW JACKET 49868 is a 2-valve refrigerant charging manifold designed for HVAC technicians working with R-22, R-404A, and R-410A refrigerant systems. The manifold features compact ball valves and ships with three 60-inch PLUS II hoses in red, yellow, and blue. Gauge faces measure 3.125 inches and are fitted with polycarbonate lenses. The body is constructed from aluminum and steel with brass fittings, making it durable for regular field use. This is an analog manifold intended for charging, recovery, and evacuation tasks on residential and light commercial refrigeration and air conditioning equipment.

The 49868 is suited for service calls on split systems, package units, and refrigeration equipment that use R-22, R-404A, or R-410A refrigerants. The included 60-inch PLUS II hoses give technicians enough reach to work comfortably at the unit without repositioning the manifold. The compact ball valve design allows for precise flow control and reduces refrigerant loss during hose connection and disconnection. This manifold is a practical everyday service tool for licensed HVAC-R technicians performing system diagnostics, charging, and recovery work.

Key Features

• Compatible with R-22, R-404A, and R-410A refrigerants
• Includes three 60-inch PLUS II compact ball valve hoses in red, yellow, and blue
• 3.125-inch gauge faces with polycarbonate lenses for clear pressure readings
• 1/4-inch hose and fitting connections standard across all ports
• Aluminum and steel construction with brass fittings for field durability
• 1-year limited warranty with lifetime warranty thereafter

Compatibility

Designed for use with R-22, R-404A, and R-410A refrigerant systems. Suitable for residential and light commercial HVAC-R service applications requiring a standard 2-valve analog charging manifold with 1/4-inch connections.

Installation Notes

Installation and use should be performed by a licensed HVAC-R technician in accordance with EPA Section 608 regulations governing refrigerant handling. Before connecting the manifold, ensure the system is properly isolated and that hose connections are snug to prevent refrigerant loss. Inspect hoses and fittings for wear or damage before each use. Always purge hoses of non-condensables prior to charging or recovery procedures.

Technical Specifications

• Refrigerant Compatibility: R-22, R-404A, R-410A
• Number of Valves: 2
• Number of Hoses: 3
• Hose Type: 60-inch PLUS II compact ball valve RYB
• Gauge Size: 3.125 inches
• Connection Size: 1/4 inches
• Fitting Size: 1/4 inches
• Pressure Scale: psi
• Lens Material: Polycarbonate
• Body Material: Aluminum, Steel, Brass, Polycarbonate, Rubber, Nylon
• Handle Color: Red, Yellow, Blue
• Length: 12.75 inches
• Width: 11.75 inches
• Height: 5.25 inches
• Weight: 5.43 pounds
• Digital: No
• Oil Filled Gauges: No
• Warranty: 1 year limited, lifetime thereafter
• Country of Origin: United States

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 49868
