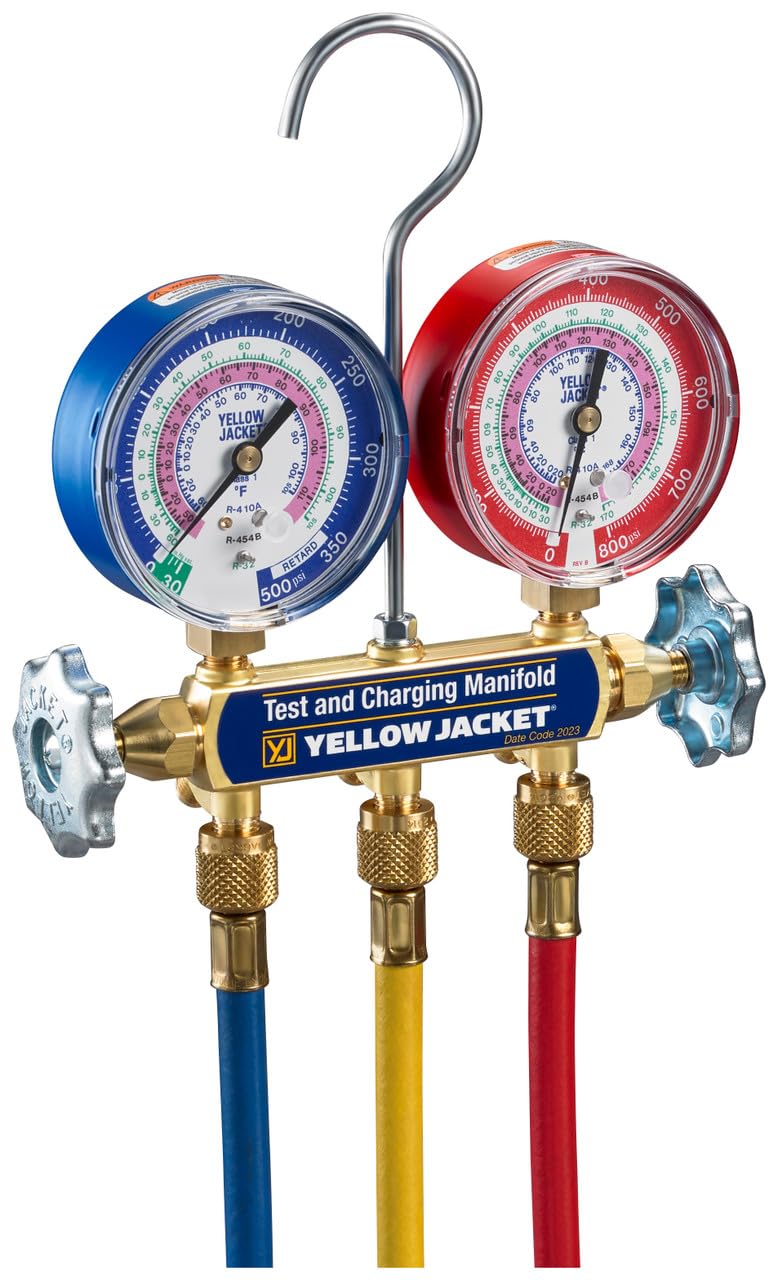

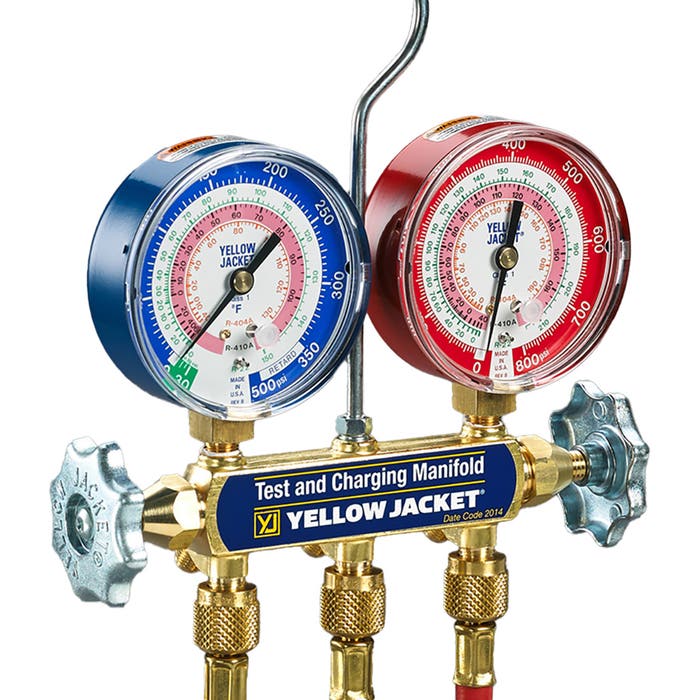

Yellow Jacket 42036 Series 41 A2L 2-Valve Manifold R32/454B/410A 60 inches Hoses

Product Description

The Yellow Jacket 42036 2-Valve Series 41 A2L Manifold is A2L compatible and features larger color-coded gauges in rugged steel cases with polycarbonate crystals. The 1 percent accuracy allows for an exact reading in critical charge systems. The full porting maximizes the capacity and flow while the forged brass body enables higher durability. Designed for air conditioning and refrigeration services.

• Color-coded scales
• Sliding double "O" ring pistons reduce wear
• Forged brass body for durability

Product Highlights

The Yellow Jacket 42036 manifold is designed for use with R-32, R-454B, and R-410A refrigerants and includes 60" hoses. It features 3-1/8" gauges for accurate readings.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 42036
• Country of Origin: USA

Technical Specifications

• MPN: 42036
• Brand: YELLOW JACKET
• Display Style: Analog
• Number of Valves: 2
• Refrigerants: R-32/454B/410A
• Hoses: 60" PLUS II Red/Yellow/Blue
• Units of measure: psi, F°
• Hoses included: 60" PLUS II with standard fittings
• EAN: 0686800420363
• UPC: 686800420363
• Country of Origin: United States
• Accuracy: 1%
• Body Material: Brass
• Connection Size: 1/4 in
• Display Type: Analog Dial
• Gauge Diameter: 3-1/8 in
• Gauge Pressure Range: -14.7-800 PSI
• Hose Length: 60 in
• Includes Hoses: Yes
• Maximum Working Pressure: 800 PSI
• Product Family: Series 41
• Product Type: Manifold
• Refrigerant Type: R-32~R-454B~R-410A
