Yellow Jacket 41868 Series 41 Hydrocarbon Two Valve Manifold with 24 feet Hoses

Product Description

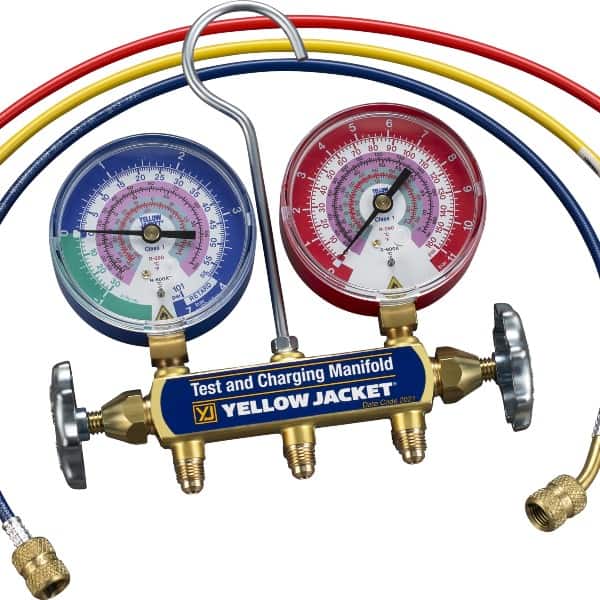

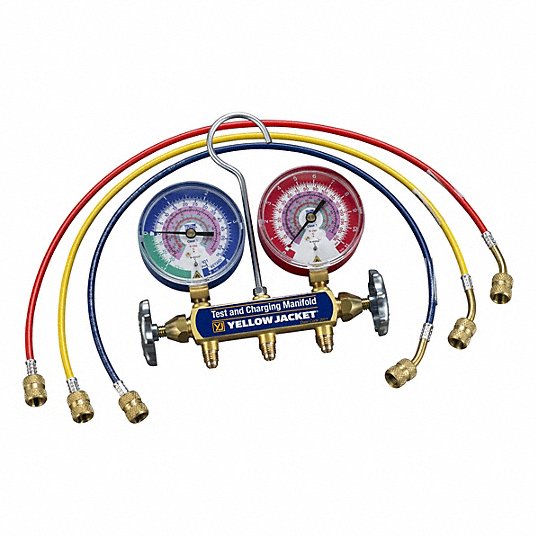

The Yellow Jacket 41868 Series 41 Hydrocarbon 2-Valve Manifold for R-290 and R-600a provides critical charge hydrocarbon systems service capabilities. It features large 3-1/8">(80mm) low and high side gauges with color-coded pressure scales and saturation temperature. The small ID 24" REFLEX hoses ensure simple and precise charging.

• For use with R-290 and R-600a
• Includes 24" RYB REFFLEX small-ID hoses
• Large 3-1/8" (80mm) gauges feature steel cases with polycarbonate crystals

Product Highlights

This manifold features color-coded scales and large, easy-to-read dials with 1% accuracy. It includes long-life nylon seats and a forged brass body for durability.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 41868
• Country of Origin: USA

Technical Specifications

• Manufacturer: RITCHIE ENGINEERING INC.
• Part Number: 41868
• Item model number: 41868
• Material: Alloy Steel, PC
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• Refrigerants: R-600A and R-290
• Number of Valves: 2
• Number of Hoses: 3
• Display Type: Analog
• Gauge Type: High Side/Low Side
• Gauge Diameter: 3-1/8 in
• Display Illumination: Non-Illuminated
• High Side Display Pressure - Minimum: 0 psi
• High Side Display Pressure - Maximum: 160 psi
• Low Side Display Pressure - Minimum: 30 in Hg
• Low Side Display Pressure - Maximum: 101 psi
• For Refrigerant Type: R-290; R-600A
• Manifold Port Connection Size: 1/4 in
• Manifold Port Connection Gender: Male
• Manifold Port Connection Type: SAE
• Manifold Port Connection Thread Direction: Right-Hand
• Vacuum Port Connection Size: 1/4 in
• Vacuum Port Connection Gender: Male
• Vacuum Port Connection Type: SAE
• Vacuum Port Connection Thread Direction: Right-Hand
• Hose Length: 2 ft
• Hose Connection Type: SAE
• Hose Connection Thread Direction: Right-Hand
• Pressure Units Measured: bar; psi
• Pressure Resolution: 5 psi
• Temperature Units Measured: C; F
• Temperature Resolution: 1 F; 1 C
• Includes Vacuum Port: Vacuum Port Included
• Includes Sightglass: Sightglass Not Included
• Includes Gauge Boots: Boot Not Included
• Body Material: Brass
• A2L Compatibility: Not A2L Compatible
• Product Type: Manifold Gauge Set
• Series: 41
• Calibration Certificate Type: Not Certified
• Country of Origin: USA (subject to change)
• Refrigerant Type: R-290, R-600A
