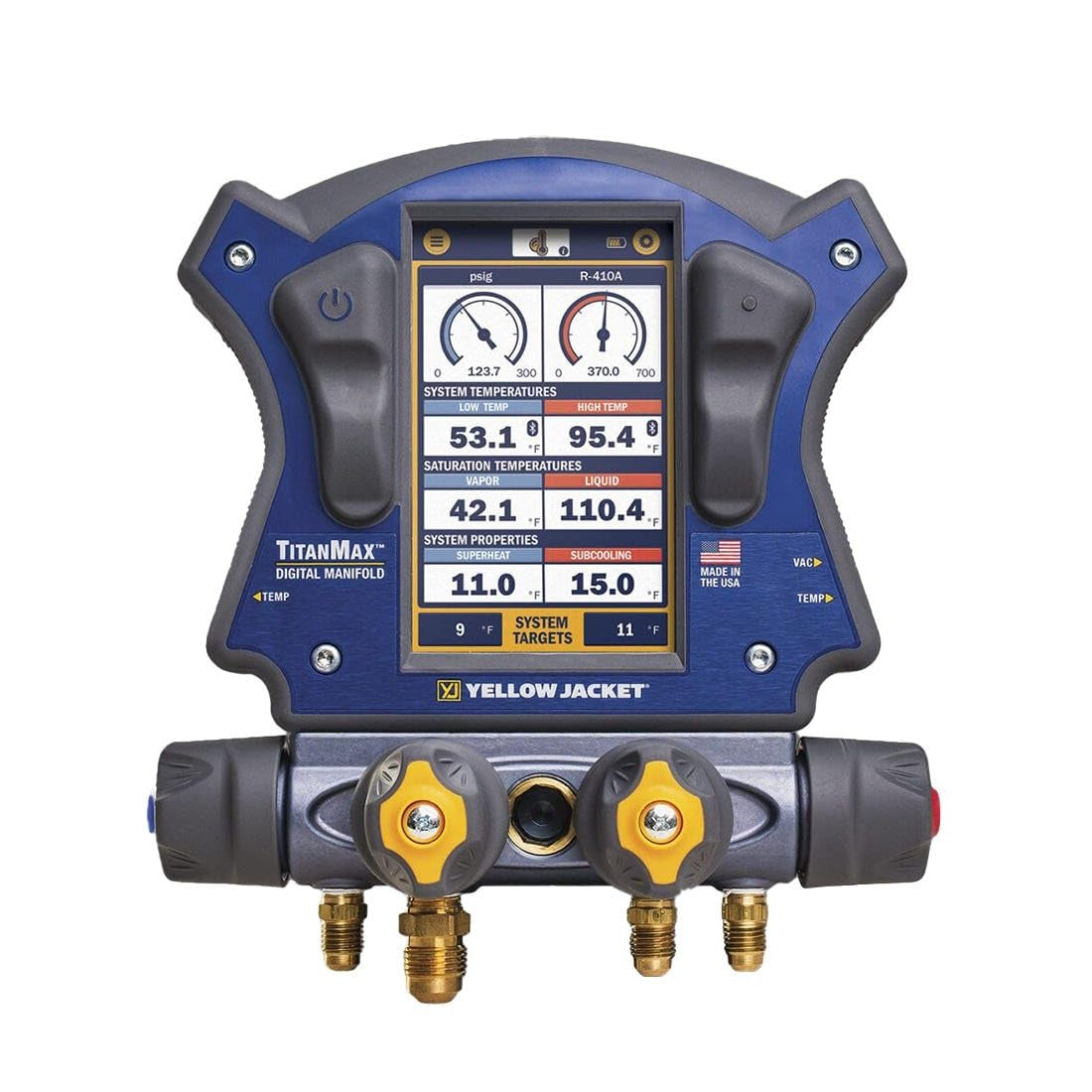

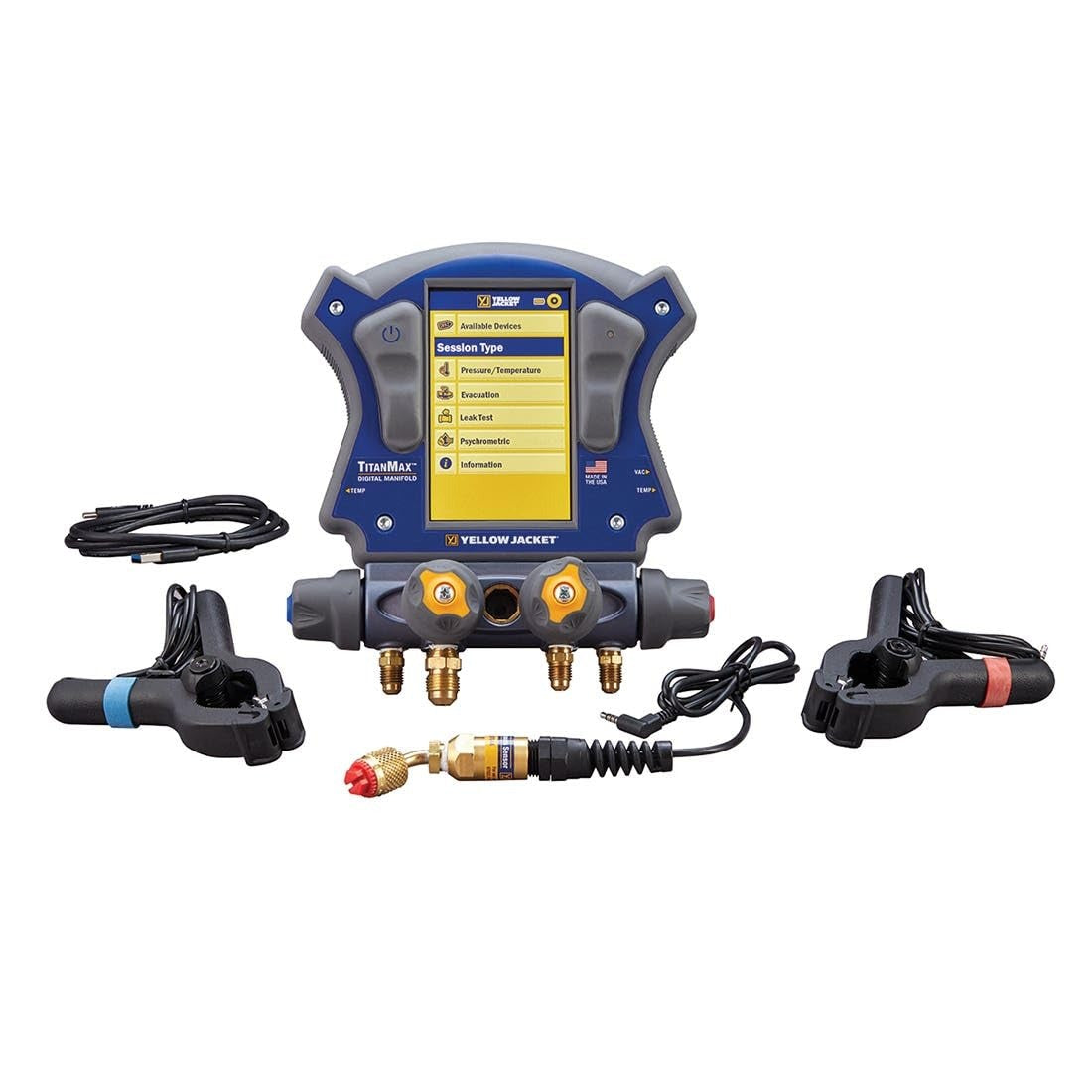

The YELLOW JACKET 40881 TITANMAX Digital Manifold is a full-featured electronic manifold designed for HVAC/R service technicians performing system diagnostics, evacuation monitoring, and refrigerant circuit analysis. The unit measures both high-side and low-side pressures while simultaneously displaying vapor and liquid saturation temperatures. Onboard calculations deliver real-time superheat and subcooling values, reducing the need for manual lookups. The kit includes a vacuum sensor, two Titan temperature clamps, and a USB-C cable. Weighing 4 pounds and measuring 10.91 inches x 8.82 inches x 5.59 inches, the manifold is built for field use by licensed HVAC technicians.
The 40881 TITANMAX Digital Manifold is suited for residential and light commercial HVAC/R service work where accurate pressure-temperature readings and automated superheat and subcooling calculations are required. It is appropriate for use during system commissioning, troubleshooting refrigerant charge, or confirming proper system operation after a repair. The included vacuum sensor adds the ability to monitor deep vacuum during system evacuation without a separate gauge. The USB-C cable supports connectivity for data transfer or charging as applicable to the unit.
Key Features
Measures high-side and low-side pressures simultaneously
Displays vapor and liquid saturation temperatures for common refrigerants
Calculates system superheat and subcooling automatically
Includes vacuum sensor for evacuation monitoring
Includes two Titan temperature clamps for accurate line temperature measurement
USB-C cable included for connectivity
Compatibility
Designed as an OEM-branded digital manifold for use with common HVAC/R refrigerant systems requiring high-side and low-side pressure and temperature measurement.
Installation Notes
Installation and operation should be performed by a licensed HVAC/R technician familiar with refrigerant handling regulations under Section 608 of the EPA. Always recover refrigerant and depressurize the system to a safe level before connecting or disconnecting manifold hoses. Follow the manifold manufacturer instructions for vacuum sensor connection and refrigerant selection to ensure accurate readings. Do not exceed the rated pressure range of the manifold when connecting to high-side service ports.
Technical Specifications
Functions
High-side and low-side pressure measurement, saturation temperature display, superheat and subcooling calculation, vacuum monitoring
