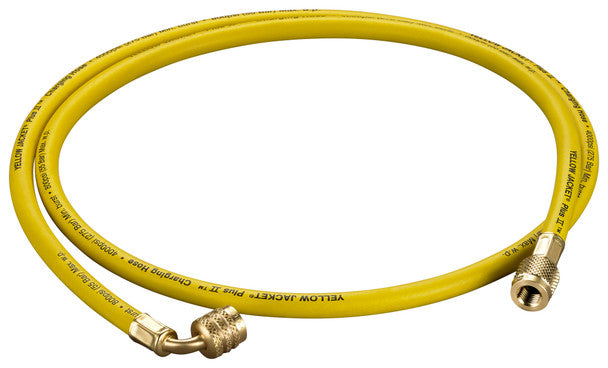

Yellow Jacket 30660 PLUS II 1/4 inches Hose for Left-Handed A2L Refrigerant Tanks - 60 inches Length 1/4 inches LH to 1/4 inches RH Right Angle Fitting

Product Description

The YELLOW JACKET 30660 PLUS II 1/4" Hose is designed for left-handed A2L refrigerant tanks, featuring a 60" length and a 1/4" LH to 1/4" RH right angle fitting. It incorporates left-handed connections to differentiate it from A1, non-flammable refrigerants. The nylon permeation barrier meets requirements for CFC, HCFC, and HFC refrigerants.

• Features left-handed connections to differentiate from A1, non-flammable refrigerants.
• Includes conversion adapters from 1/4" Female SAE flare left-handed (LH) x 1/4" Female SAE flare right-handed for A2L refrigerants.
• Rated for 4000 psi (276 bar) minimum burst and 800 psi (55 bar) maximum working pressure.

Product Highlights

This hose is designed for A2L refrigerant systems, ensuring safe and efficient charging with its specialized left-handed connections and robust construction.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 30660
• Country of Origin: USA

Technical Specifications

• Fitting Size: 1/4" LH and RH
• Hoses Included: 1 - Yellow
• Hose Length: 60"
• Burst Pressure: 4,000 PSI (276 bar)
• Working Pressure: 800 PSI (55 bar)
• Min. Bend Radius: 6"
• Hose End: 1/4" 90° Angle
• Hose Type: PLUS II™
• Fitting 1: 1/4” LH
• Fitting 2: 1/4” RH
• Fitting Angle: 90°
