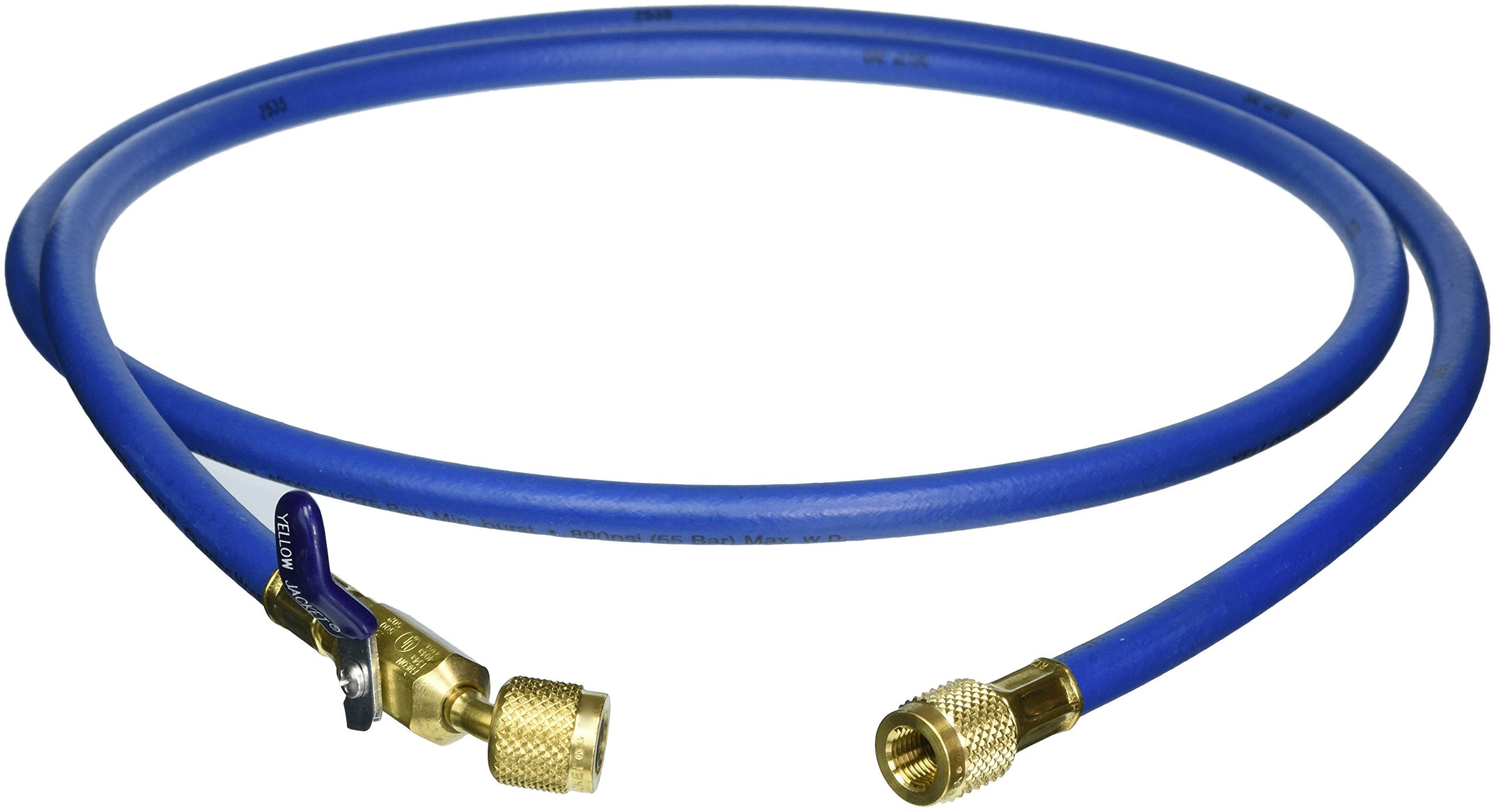

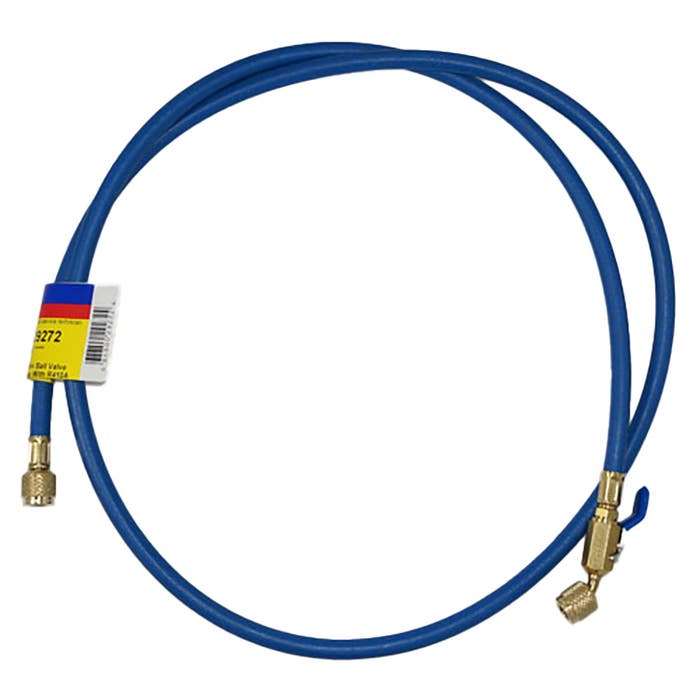

Yellow Jacket 29272 Plus II 1/4 inches Hose With Compact Ball Valve End 72 inches

Product Description

The YELLOW JACKET 29272 PLUS II 1/4" Hose features a compact ball valve end. This 72" hose is UL recognized and meets SAE requirements J2196 for CFC, HCFC and HFC refrigerants. It offers improved resistance to moisture migration and is recommended for R-410A.

• UL recognized assemblies (File SA9737)
• Nylon permeation barrier meets SAE requirements J2196 for CFC, HCFC and HFC refrigerants
• Rated for 4000 psi minimum burst and 800 psi maximum working pressure

Product Highlights

This Yellow Jacket hose is made in the USA and features a metal handle that fits tight areas and traps all the gas.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 29272
• Country of Origin: USA

Technical Specifications

• Brand: Yellow Jacket
• Description: Plus II 1/4" Charging Hose With Compact Ball Valve End
• Length: 72 in
• Refrigerants: R-12 / R-22 / R-134A / R-404A / R-407C / R-410A / R-502
• Burst Pressure: 4000 psi
• Package Quantity: 1
• Max Working Pressure: 800 psi
• Connection Size: 1/4"
• Manufacturers Part Number: 29272
• Certifications: UL Listed
• Manufacturer: Fotronic Corporation
• Product Group: BISS
• Model / MPN: 29272
• Number of Items: 1.0
• Condition: NEW
• Country of Origin: United States
• Operating Temperature: -20° to 180°F (-28.8° to 82.2°C)
• Minimum bending radius: 6 in
• Type: Charging Hose
• UPC: 686800292724
• Model Number: 29272
• Product Type: Charging Hose
• Category: Refrigeration Hoses
• Bending Radius - Minimum: 6 in
• Overall Length: 6 ft
• Line Connection Size: 1/4 in
• Manifold Connection Size: 1/4 in
• Number of Hoses: 1
• Item: Hose
• Application: Charging
• Manifold Connection Gender: Female
• For Refrigerant Group: CFC, HCFC, HFC
• Operating Temperature - Maximum: 180 Degrees F
• Manifold Connection Type: SAE
• Valve Type: Ball Valve
• Operating Temperature - Minimum: -20 Degrees F
• Line Connection Gender: Female
• Line Connection Type: SAE
• Operating Pressure - Maximum: 800 psi
• Standards: UL Listed
• For Refrigerant Type: R-410A
