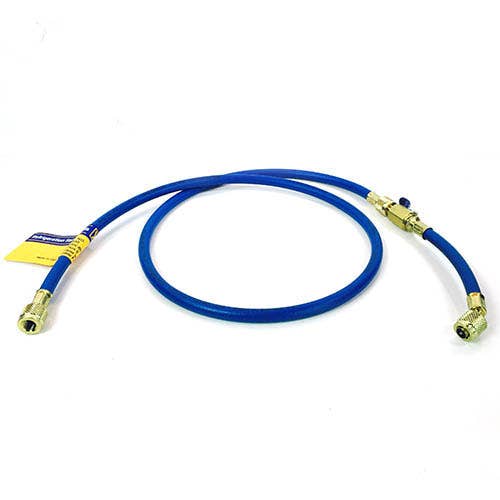

Yellow Jacket 25260 Plus II Hose with FlexFlow Valve 60 inches

Product Description

The YELLOW JACKET 25260 Plus II hose features a FlexFlow valve that shows when the valve is open or closed. The flexible hose provides easier access to tight areas. It is rated for 4000 psi minimum burst and 800 psi maximum working pressure with an operating temperature of -20 to 180 degrees Fahrenheit.

• Valve handle position shows when valve is opened or closed
• Flexible length of hose between valve and fitting makes access to tight areas easier
• UL recognized assemblies (File SA9737)

Product Highlights

This hose is designed for efficient refrigerant charging and recovery, offering superior pressure resistance, durability, and flexibility.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 25260
• Country of Origin: USA

Technical Specifications

• Rated Pressure: 4000 psi (276 bar) minimum burst and 800 psi (55 bar) maximum working pressure
• Operating Temperature: -20° to 180°F (-28.8° to 82.2°C)
• Minimum Bending Radius: 6″ (152mm)
• Length: 60 in
• Nominal Size: 1/4 in
• Refrigerant Type: R-410A
• Bend Radius: 6 in
• Temperature Rating: -20 to 180 deg F
