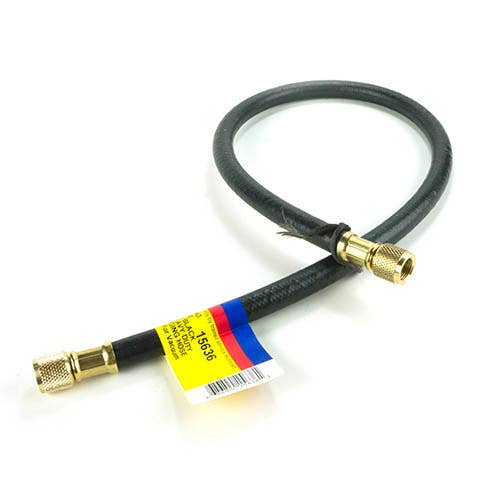

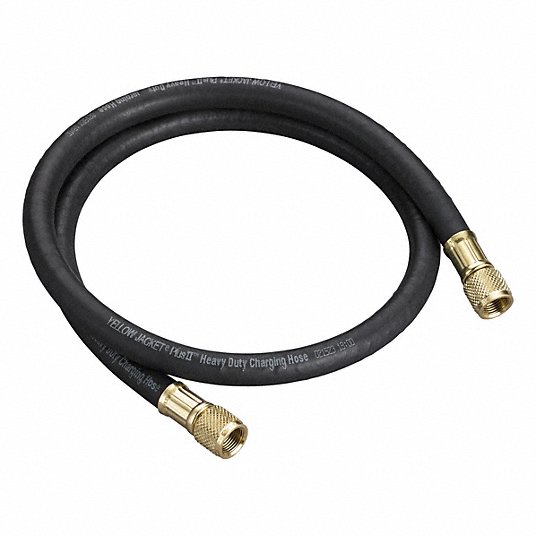

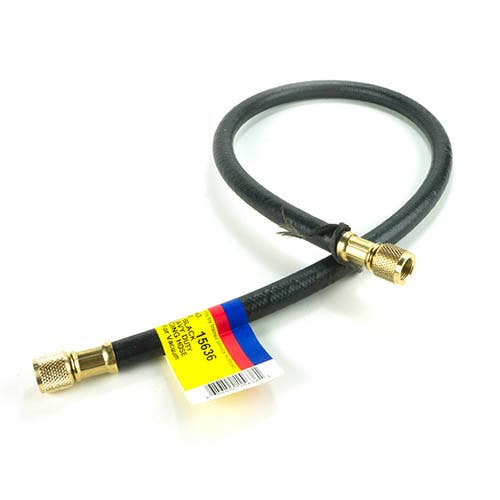

Yellow Jacket 15636 combination charging/vacuum hose 3/8 inch ID 36 inch length 3/8 inch straight flare x 3/8 inch straight flare 0 degree angle

Product Description

YELLOW JACKET 15636 Combination Charging/Vacuum Hose is designed for HVAC/R applications, featuring a 3/8 inch inside diameter and 36 inch overall length. This heavy-duty hose has 3/8 inch straight flare x 3/8 inch straight flare end connections, capable of handling a pressure rating of 600 PSI and a burst pressure rating of 3000 PSI. It operates effectively within a temperature range of -22 to 176 degrees F, facilitating faster vacuum pulling compared to 1/4 inch hoses.

• Heavy-duty construction for increased service life and durability.
• Designed to pull a vacuum faster than standard 1/4 inch hoses.
• Features a minimum bend radius of 8 inches and operates from -22 to 176 degrees F.

Product Highlights

This hose is suitable for HVAC/R applications, offering robust performance for charging and vacuum tasks.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 15636
• Country of Origin: USA

Technical Specifications

• Application: HVAC/R
• Burst Pressure Rating: 3000 PSI
• End Connection: 3/8 Inch Straight Flare x 3/8 Inch Straight Flare
• Inside Diameter: 3/8 Inch
• Minimum Bend Radius: 8 Inch
• Overall Length: 36 Inch
• Pressure Rating: 600 PSI
• Temperature Rating: -22 to 176 Deg F
• Composition: Rubber, Polyester, Nylon, Brass
• Nominal Wall Thickness: 0.1875 inches
• Refrigerant Compatibility: All CFC; HCFC; HFC
• Hose End Angle: 0°
• Manifold Connection Type: SealRight Str
• Line Connection Type: SealRight Str
• Number of Hoses: 1
