Product Description

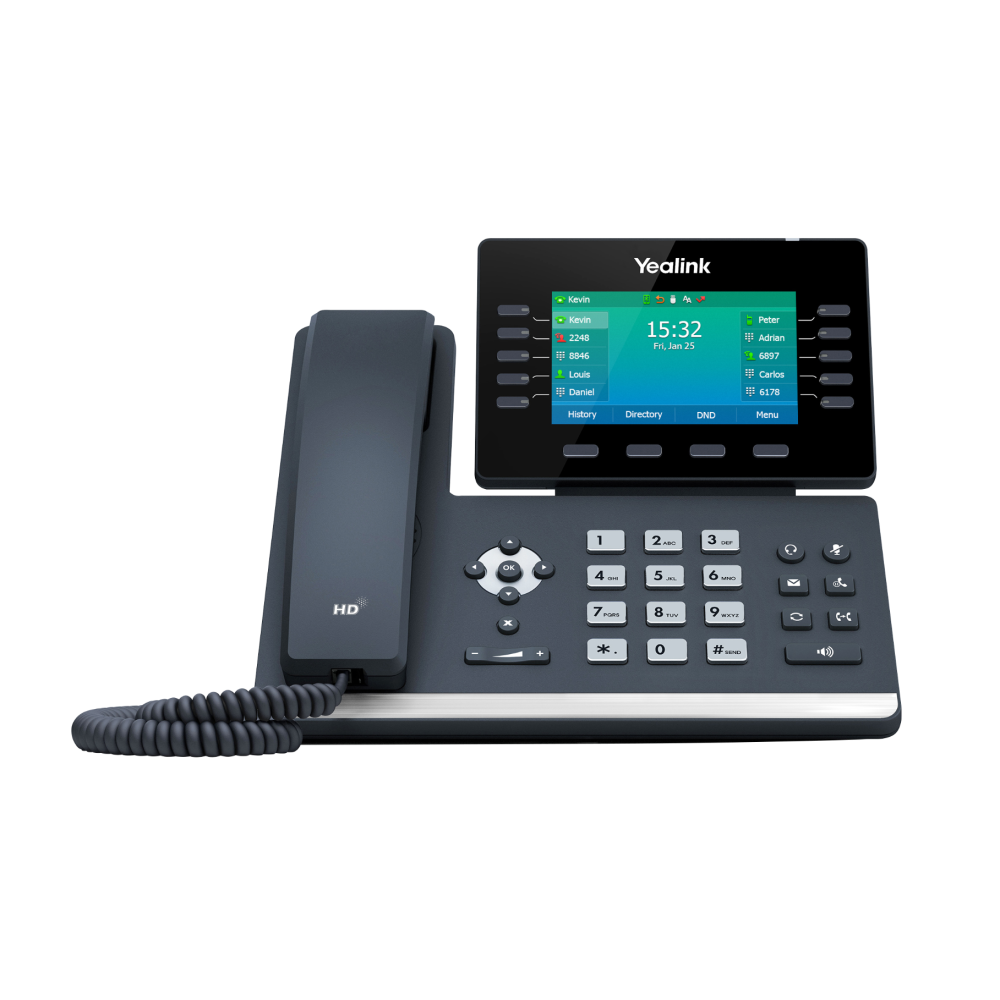

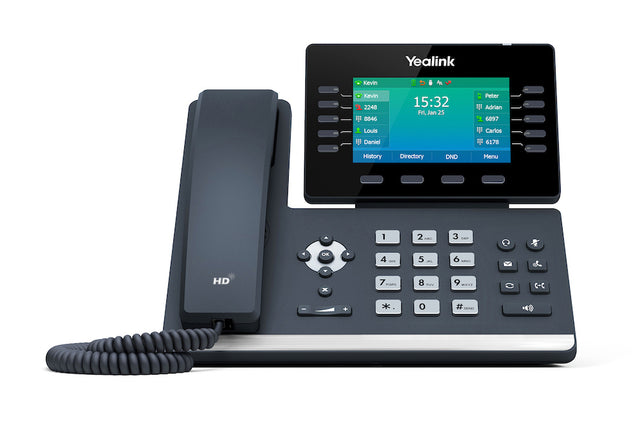

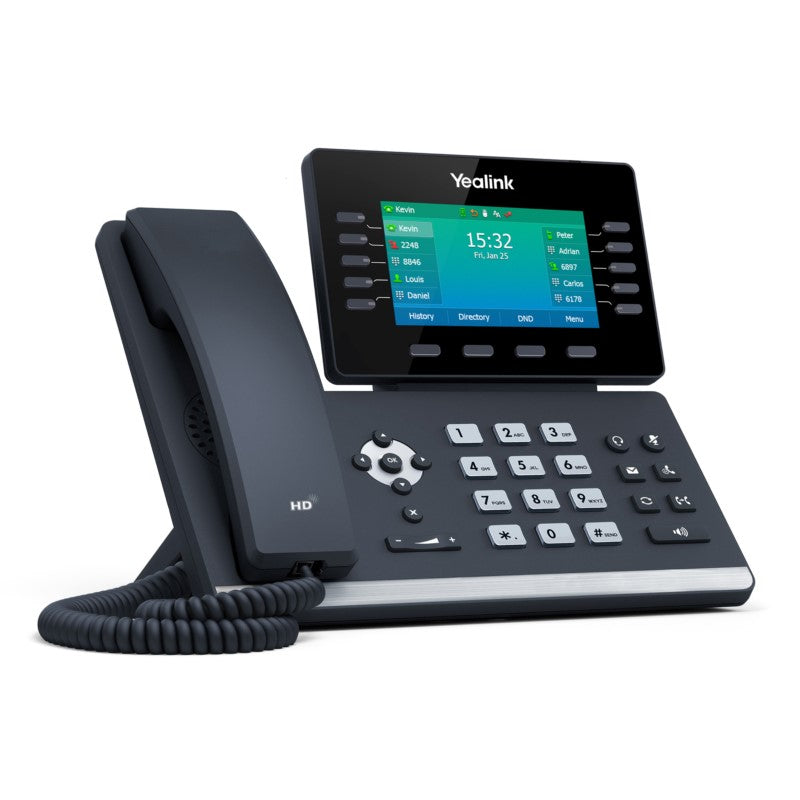

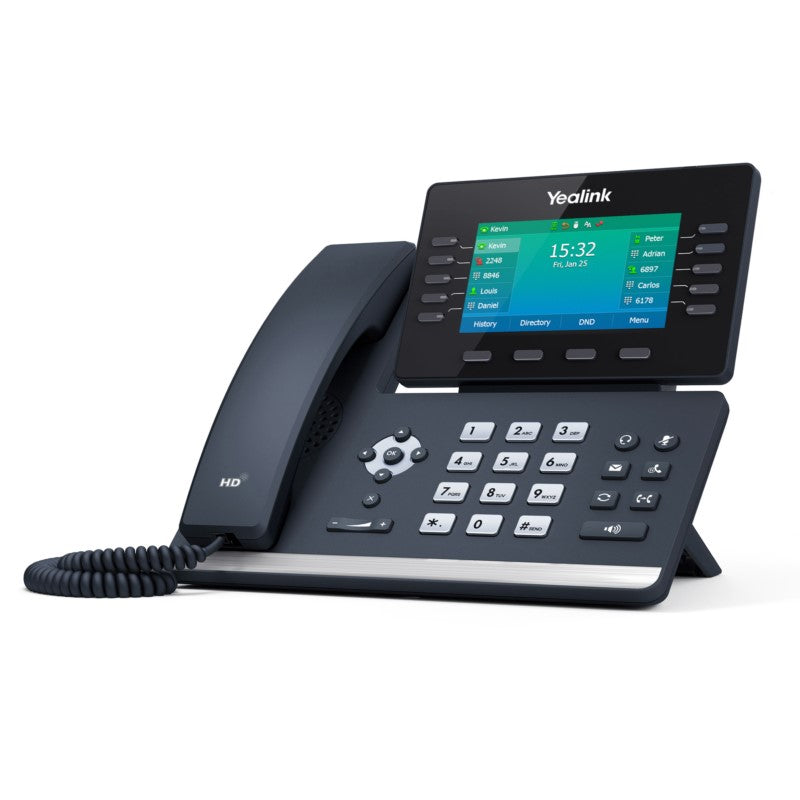

The YEALINK SIP-T54W, MPN SIP-T54W, is a 16-line PoE IP phone with a 4.3-inch display. It is designed for professionals and managers with moderate call loads. This phone redefines collaboration with an adjustable high-resolution display and Acoustic Shield technology. It also features corded-cordless phone capabilities and advanced wireless connectivity with Bluetooth 4.2 and Wi-Fi 2.4G/5G.
- Adjustable High-Resolution Display
- Acoustic Shield technology
- Corded Cordless Phone
- Advanced Wireless Connectivity
Product Highlights
This IP phone supports DECT handset compatibility, a SIP+USB dual-mode solution, and has a USB port for call recording and wireless USB headsets.
Product Information
Standard Information
-
Brand: YEALINK
-
Manufacturer Part Number: SIP-T54W
-
Country of Origin: Unknown
Technical Specifications
-
Color: Classic Gray
-
Caller ID: Yes
-
Product Type: IP Phone
-
Speakerphone: Full Duplex
-
Display Color: Color
-
Wireless LAN Standard: IEEE 802.11a/b/g/n/ac
-
Model: SIP-T54W
-
MPN: 1301081
-
High Definition: Yes
-
Protocols Supported: SIP
-
Lines: 16 Lines
-
Wireless Connectivity: Wi-Fi
-
Wi-Fi: Yes
-
Bluetooth: Yes
-
USB Ports: 1x USB-A
-
Headset Support: USB-A
-
Video Support: No
-
Integrated Sidecar: No
-
Expandable: Yes
-
Local Conferencing: 10 Way
-
Ethernet Ports: 2x Gigabit
-
PoE: Yes
-
Wall Mountable: Via Optional Mount
-
Phone Type: Wireless Phone
-
AUDIO FEATURES: HD voice: HD handset, HD speaker
Hearing aid compatible (HAC) handset
Acoustic Shield
Smart Noise Filtering
Audio codec: Opus, G.722, PCMA, PCMU, G.729, G.729A, G.726, G.723.1, iLBC
DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
VAD, CNG, AEC, PLC, AJB, AGC
-
PHONE FEATURES: 16 VoIP accounts
Call hold, call forward, call waiting, call transfer
One-touch speed dial, hotline, mute, DND
Group listening, SMS, emergency call
Redial, call return, auto answer
10-way conferencing
Direct IP call without SIP proxy
Ring tone selection/import/delete
Set date time manually or automatically
Dial plan, XML Browser, Action URL/URI
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Built-in dual band Wi-Fi:
Network standard: IEEE802.11a/b/g/n/ac
Transmission rate: Up to 433Mbps (dynamic)
Frequency range: 2.4GHz/5.0GHz
Built-in Bluetooth for:
Bluetooth headset,
Mobile contacts synchronization
Bluetooth call
Simultaneous connection of one headset and one mobile phone
USB port (2.0 compliant) for:
Wired/wireless USB headset
USB call recording through USB flash drive

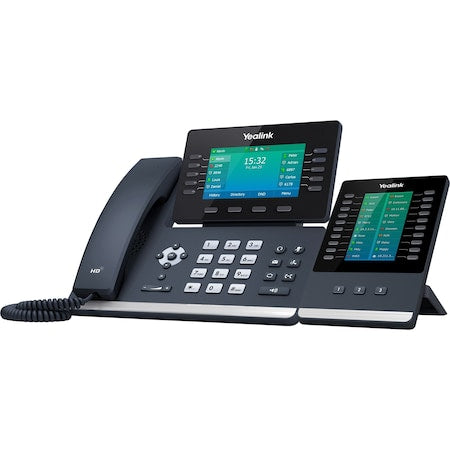

Color-screen expansion modules EXP50 (up to 3)
Wireless Headset Adapter EHS40
USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone,
USB connectivity to Yealink UH36 headset:
Basic functions: Answer / end, call mute
Enhanced function: audio optimization, redial, call hold, volume synchronization, multiple calls control
Content Sharing (via Yealink VCD)
Enhanced DSS key
-
DISPLAY AND INDICATOR: 4.3″ 480 x 272-pixel color display with backlight
16 bit depth color
LED for call and message waiting indication
Dual-color (red or green) illuminated LEDs for line status information
Wallpaper
Intuitive user interface with icons and soft keys
Multilingual user interface
Caller ID with name and number
Screensaver
Power saving
-
INTERFACE: Dual-port Gigabit Ethernet
Power over Ethernet (IEEE 802.3af), class 3
1 x USB port (2.0 compliant)
1 x RJ9 (4P4C) handset port
1 x RJ9 (4P4C) headset port
