Product Description

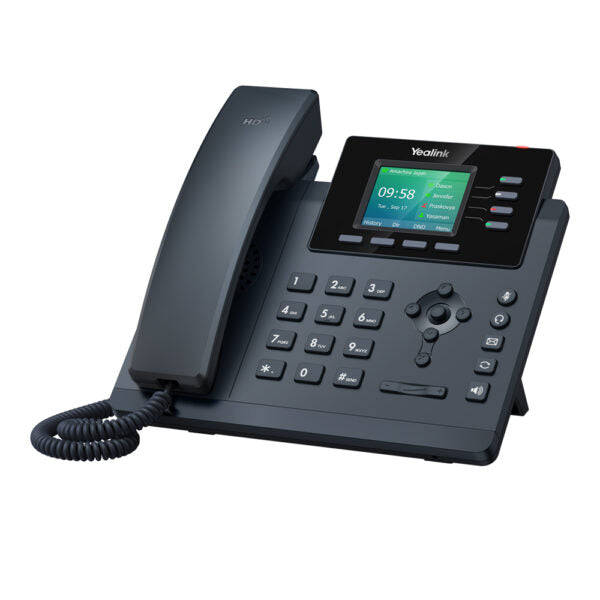

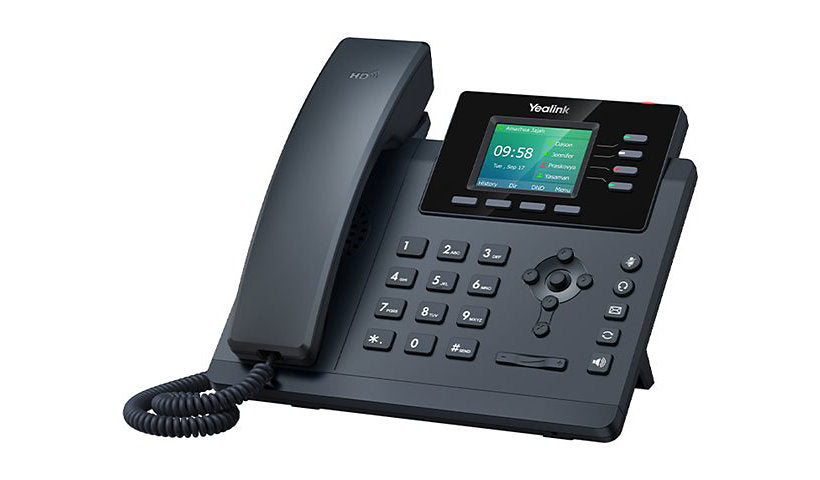

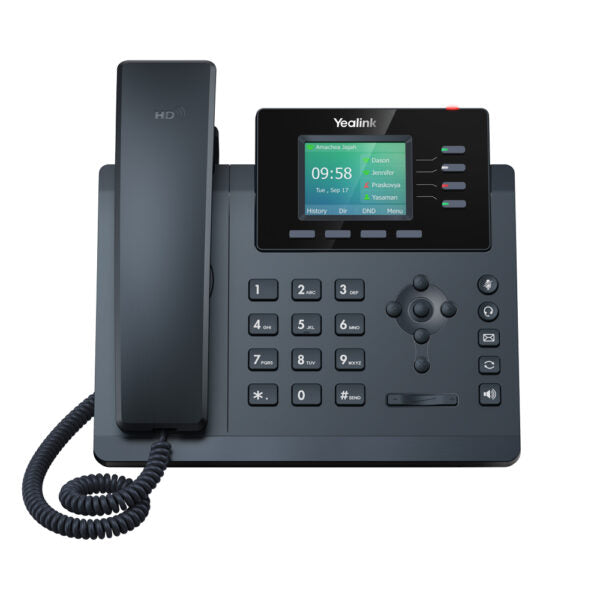

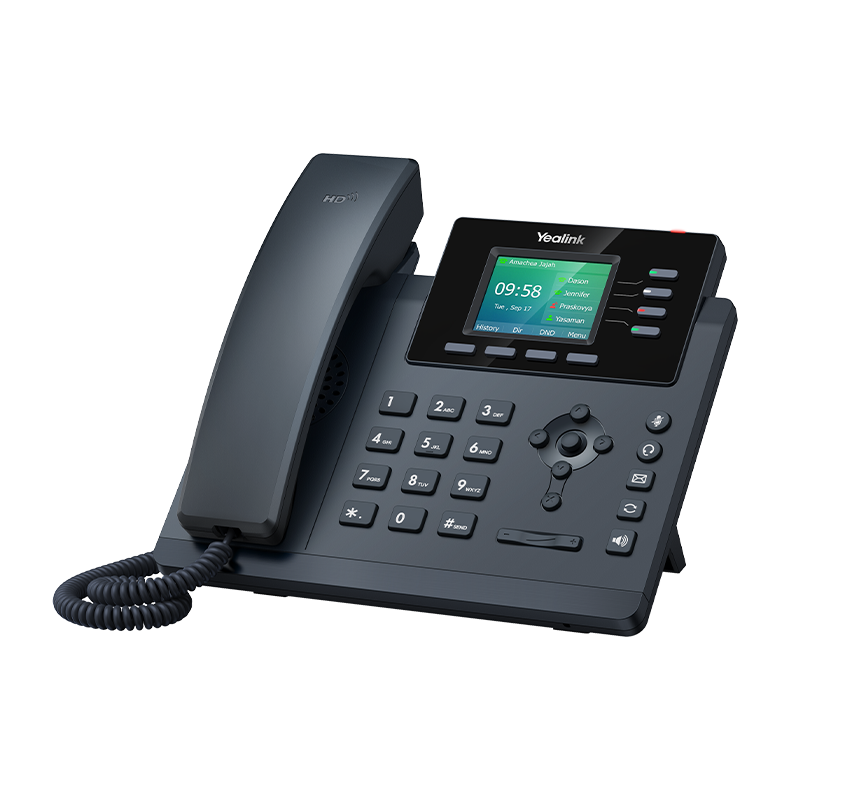

The Yealink SIP-T34W is an IP phone designed to enhance communication and boost business productivity. It features built-in 2.4G/5G WiFi for effortless deployment and flexible network connectivity. The phone delivers superior HD audio quality with Smart Noise Filtering Technology, ensuring distraction-free and fluent conversations. It supports up to 4 lines and includes local 5-way conferencing.
- Built-in WiFi for effortless deployment
- Superior HD audio with Smart Noise Filtering Technology
- Classic design with modern appearances and ergonomic details
Product Highlights
Features a 2.4-inch 320 x 240 pixel backlit color display, hall switch, adjustable multi-angle stand, USB 2.0 interface, and enhanced security protocols.
Product Information
Standard Information
-
Brand: YEALINK
-
Manufacturer Part Number: SIP-T34W
Technical Specifications
-
IP Address Assignment: DHCP, Static
-
IP Telephony Network Ports: 2 x Ethernet 10Base-T/100Base-TX/1000Base-T
-
Network Features: Class 2 PoE, Lightweight Directory Access Protocol (LDAP), Network Address Translation (NAT) Traversal
-
Network Protocols: DNS SRV, DSCP, FTP, GARP, HTTP, HTTPS, L2TP, SNTP, STUN, TCP, TFTP, TR-069, UDP
-
Phone Connections: Handset jack / RJ-9, Headset jack / RJ-9, USB
-
Backlit Display: Yes
-
Color Depth: 16-bit (65000 colors)
-
Color Support: Color
-
Display Diagonal Size: 2.4 inch
-
Display Diagonal Size (metric): 6.1 centimetre
-
Display Languages: Multilingual
-
Display Location: Base
-
Display Resolution: 320 x 240 pixels
-
Display Type: LCD display
-
Features: Screensaver
-
Indicators & Controls: Message waiting indicator
-
Multiple Conferencing: 5-way
-
Phone Directory Capacity: 1000 names & numbers
-
Speakerphone: Yes
-
Voice Codec: G.711a, G.711μ, G.722, G.723.1, G.726, G.729, G.729a, G.729ab, G.729b, iLBC, PCMA, PCMU
-
Additional Functions: Anonymous call, Anonymous call rejection, Auto answer, Bridged Line Appearance (BLA), Call park, Call pickup, Call recording, Call return, Do Not Disturb (DND), Emergency call, HD audio, HD Voice, Redial, Smart Noise Filtering
-
Call Services: Call Forwarding, Call Hold, Call Transfer, Call Waiting, Caller ID, Voicemail
-
Caller ID Type: Caller ID
-
Compatible Software: Yealink Device Management Platform(YMDP / YMCS)
-
Dialer Location: Base
-
Lines Supported: 4 lines
-
Main Features: Integrated Ethernet switch, Multiple VoIP protocol support
-
Packaged Quantity: 1
-

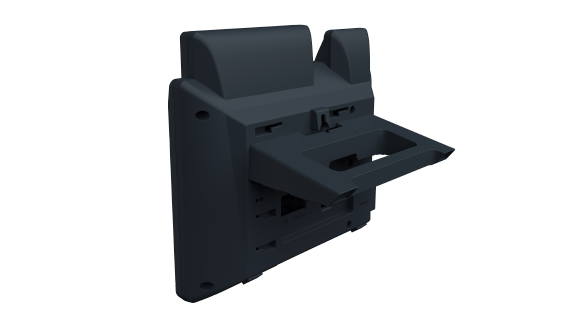

Placing/Mounting: Table-top, Wall-mountable
-
Power Over Ethernet (PoE) Support: Yes
-
Product Type: VoIP phone
-
Quality of Service: IEEE 802.1p, IEEE 802.1Q (VLAN), Type of Service (ToS)
-
Security: 256-bit AES, IEEE 802.1X, TLS 1.3, WPA2, WPA3
-
Voice Features: Acoustic echo cancellation (AEC), Adaptive jitter buffer (AJB), Automatic gain control (AGC), Comfort noise generation (CNG), Packet loss concealment (PLC), Voice activity detection (VAD)
-
VoIP: Yes
-
VoIP Protocols: RTCP-XR, SIP, SIP v2, SRTP, VQ-RTCPXR
-
Volume Control: Yes
-
Wireless Interface Provided: Wi-Fi
-
HD voice: HD handset, HD speaker
-
Smart Noise Filtering: Yes
-
Wideband codec: Opus, G.722
-
Narrowband codec: PCMU (G.711μ), PCMA (G.711A), G.723.1, G.729, G.729A, G.729B, G.729AB, G.726, iLBC
-
DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
-
Full-duplex hands-free speakerphone with AEC: Yes
-
VAD, CNG, AEC, PLC, AJB, AGC: Yes
-
4 VoIP accounts: Yes
-
Call hold, mute, DND: Yes
-
One-touch speed dial, hotline: Yes
-
Call forward, call waiting, call transfer: Yes
-
Group listening, SMS, emergency call: Yes
-
Redial, call return, auto answer: Yes
-
Local 5-way conferencing: Yes
-
Direct IP call without SIP proxy: Yes
-
Ring tone selection/import/delete: Yes
-
Set date time manually or automatically: Yes
-
Dial plan: Yes
-
XML Browser, action URL/URI: Yes
-
Integrated screenshots: Yes
-
RTCP-XR, VQ-RTCPXR: Yes
-
Built-in dual band Wi-Fi: Yes
-
Network standard: IEEE802.11a/b/g/n/ac
-
Transmission rate: Up to 433Mbps (dynamic)
-
Frequency range: 2.4GHz/5.0GHz
-
USB port (2.0 compliant) for: Yealink wired/Bluetooth headsets
