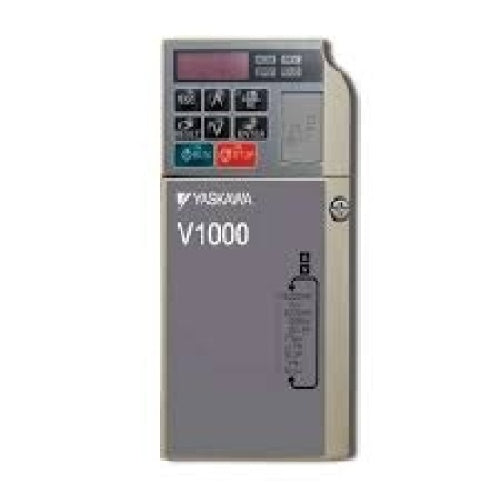

Yaskawa CIMR-VU2A0020FAA V1000 VFD, 5 HP, 200-240V

Product Description

The YASKAWA CIMR-VU2A0020FAA is a V1000 series variable frequency drive (VFD) designed for efficient motor control. This AC drive supports 200-240V input and provides precise speed regulation and motor protection. It is designed for three-phase operation, has a normal duty rated output current of 19.6A, and is enclosed in a NEMA 1 housing.

• Compact Drive
• Open Loop Vector
• Suitable for industrial applications requiring high reliability
• Designed for three-phase operation

Product Highlights

The Yaskawa CIMR-VU2A0020FAA VFD ensures efficient motor control, reduced energy consumption, and extended lifespan.

Product Information

Standard Information

• Brand: YASKAWA
• Manufacturer Part Number: CIMR-VU2A0020FAA
• Country of Origin: Japan

Technical Specifications

• Manufacturer Part Number: CIMR-VU2A0020FAA
• Manufacturer: Yaskawa
• Product Series: V1000
• Family Series: Yaskawa Drives, V1000 Series
• Description: Drive, AC, 5HP, 240V, 3PH, 17.5A, CT, N1 5HP, 19.6A, VT 6.02in.Hx5.51in.Wx5.63in.D
• Phase: 3
• HP (Constant Torque Rating): 5 hp
• HP (Variable Torque Rating): 5 hp
• Amps (Constant Torque Rating): 17.5 A
• Amps (Variable Torque Rating): 19.6 A
• Brake: DC Injection, Dynamic Braking Transistor Included
• Closed Loop: No
• AC Line Regenerative: No
• Operator Controls: Built In
• NEMA Rating: NEMA 1
• Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
• Mounting: Panel
• Nominal Input Voltage: 208 VAC, 240 VAC
• Input Voltage: 200-240 V
• Frequency: 400 Hz
• Dynamic Braking: Included
• Height: 6.02 "
• Width: 5.51 "
• Depth: 5.63 "
• Network frequency: 0.01-400 Hz
• input: 50/60 Hz
• Functions: Versatile Variable Speed/Frequency Drive (VSD/VFD) / Inverter - USA region
• Speed search: Overtorque detection
• Torque limit: 17-step speed
• Acceleration/Deceleration time switch: S-curve accel/decel
• 3-wire sequence: Auto-tuning
• Dwell: Cooling fan on/off switch
• Slip compensation: Torque compensation
• Frequency jump: Upper/lower limits for frequency reference
• DC injection braking at start and stop: Overexcitation braking
• High slip braking: PID control
• Energy saving control: Fault restart
• Application presets: Supply voltage (AC)
• Display: LED 5-digit display
• Type of network: 3-phase input (3P)
• Rated current: 19.6A (Normal duty)
• Rated active power (kW): 5.5kW (Normal duty)
• Rated power (HP): 5HP (Normal duty)
• Protection functions: Motor overheat
• Overcurrent: Overcurrent
• Overload: Overload
• Overvoltage: Overvoltage
• Undervoltage: Undervoltage
• Momentary power loss ride-thru: Momentary power loss ride-thru
• Ground fault: Ground fault
• Protection settings: Protection settings
• Communication protocol: RS-422
• RS-485: RS-485
• Mounting mode: Wall mounting
• Digital inputs: 1 x digital input (24Vdc; Sink/Source) (S1 - Forward / Stop)
• Digital outputs: 1 x digital output (SPDT Single Pole Double Throw contact type) (MA-MB-MC; MC-MB closed means fault)
• Analog inputs: 1 x analog input (0-10Vdc) (Analog input 1)
• Analog outputs: 1 x analog output (2mA / 0-10Vdc) (AM - Monitor output)
• Degree of protection: IP20
• Net Height (mm): 153 mm
• Net Width (mm): 140 mm
• Net Depth (mm): 143 mm
• Ambient air temperature for storage: -20...+60 °C
• Technology used in component: Standard heatsink fins
• Rated apparent power (S): 7.5kVA (Normal duty)
• Application type: Conveyors
• Packagings: Fans
• Pumps: Pumps
• Foods and beverages: Foods and beverages
• Industrial washers: Industrial washers
• Compressors: Compressors
• Order code / Manufacturer SKU: CIMRVU2A0020FAA
• Manufacturer product status: Commercialized
• Compliant with standard(s): UL 508C
• UL: UL
• cUL: cUL
• CE: CE
• RoHS: RoHS
• EN 50178 (LVD): EN 50178 (LVD)
• EN 50081-2: EN 50081-2
• EN 50082-2 (EMC): EN 50082-2 (EMC)
• Category 3 Safety Standard EN 61800-3: Category 3 Safety Standard EN 61800-3
• IEC 60529: IEC 60529
• FCC CFR 47 Part 15 Subpart B: FCC CFR 47 Part 15 Subpart B
• TUV: TUV
• Model #: CIMRVU2A0020FAA
• Drive: VARIABLE FREQUENCY
• Rated Hz In: 50-60 Hz
• Input (A): 24.0A/18.9A
• Output (V): 0-240 V
• Rated Hz Out: 0-400 Hz
• Output (A): 19.6 A/17.5A
• Mass: 2.6 kg
• Protection: IP20
• Enclosure: Type 1
• VFD Input Voltage: 240 Volt Three Phase
• VFD Output Voltage: 240 Volt Three Phase
• VFD Line: V1000
• VFD Amperage Output: 19.6/17.5 Amp
• Model: CIMR-VU2A0020FAA
• Country of Origin: Japan
