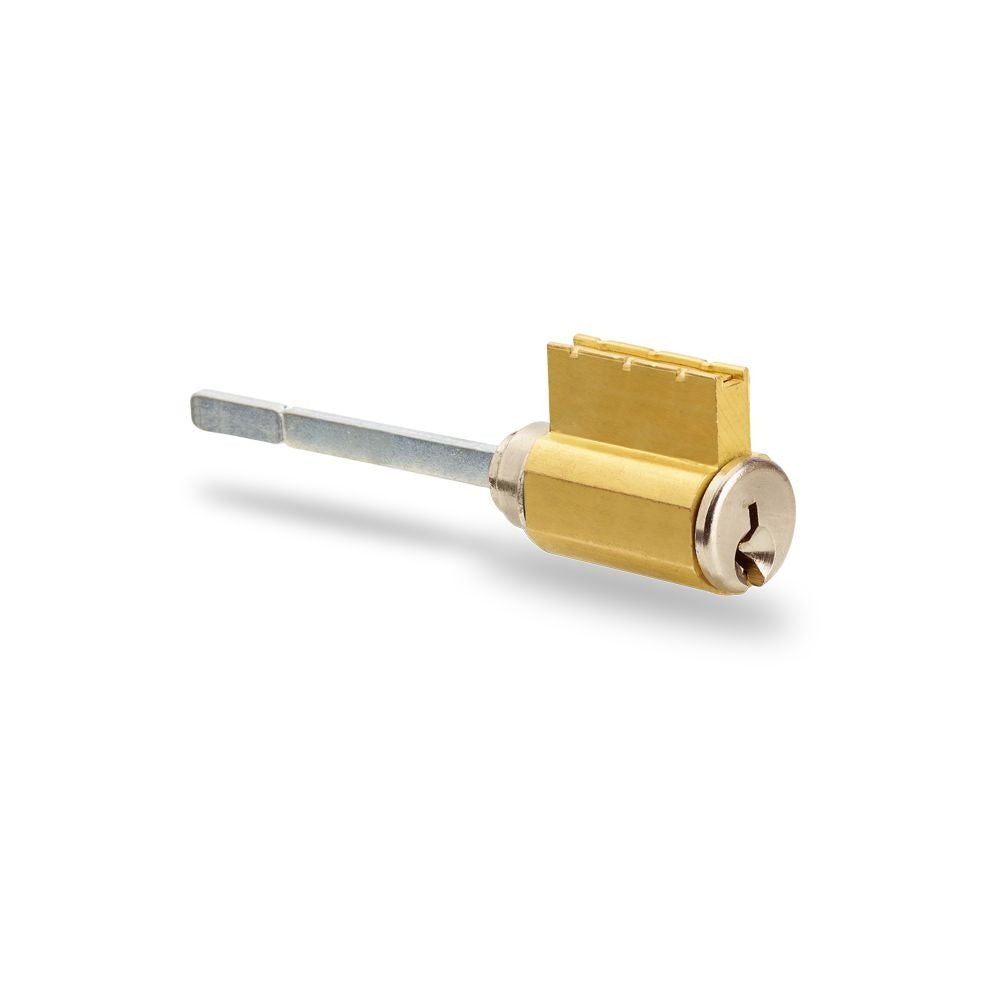

Yale AYRD200SCKA625 Keyed Alike Cylinder Schlage C Keyway

Product Description

The YALE AYRD200SCKA625 is a keyed alike replacement cylinder designed for Yale touchscreen deadbolt locks. It features a Schlage C keyway profile and a US26 bright chrome finish (625). The cylinder allows multiple locks on a property to be keyed to the same key, simplifying access management across doors. Measuring 5 inches in length, 1 inch in width, and 0.7 inches in height, it is a compact, direct-fit component. Locksmiths and commercial door hardware technicians are the primary installers for this type of cylinder.

This cylinder is suited for commercial, multi-family, retail, and mixed-use applications where keyed alike functionality is required. It is intended for use with compatible Yale touchscreen deadbolt locks and installs in place of the factory cylinder. The US26 bright chrome finish coordinates with standard commercial and residential door hardware in polished chrome. It is sold individually as a single unit.

Key Features

• Keyed alike configuration allows one key to operate multiple locks
• Schlage C keyway profile for broad key compatibility
• US26 bright chrome finish (625) for a polished appearance
• Compact form factor: 5 inches long, 1 inch wide, 0.7 inches tall
• Designed for Yale touchscreen deadbolt lock cylinders
• Sold as a single unit (EA)

Compatibility

Designed as an OEM-style replacement cylinder for Yale touchscreen deadbolt locks requiring a Schlage C keyway in a US26 bright chrome finish.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician. Remove all power or batteries from the touchscreen deadbolt before beginning cylinder replacement. Use the appropriate cylinder removal tool or follower bar to avoid displacing internal lock components during the swap. Verify keyway alignment and cylinder retention before reinstalling the lock assembly on the door.
