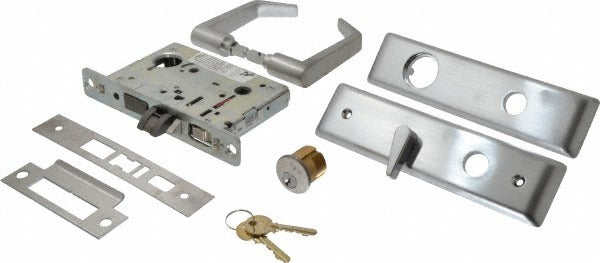

Yale AUCN8847FLRH626 Entrance Deadbolt Lever Lockset

Product Description

The YALE AUCN8847FLRH626 is a Grade 1 entrance and apartment lever lockset with an integrated dead bolt, designed for commercial and residential doors ranging from 1-3/4 to 3-1/4 inches thick. Built on Yale's 8800 Series platform, it uses a standard mortise cylinder and a 2-3/4 inch backset. The lever handle measures 4.5 inches in length and ships with two keys. Finished in satin chrome over zinc construction, it meets ANSI/BHMA A156.13 Series 1000 standards and carries a UL/cUL listing. This lockset is rated extra heavy-duty and is intended for installation by licensed locksmiths or commercial door hardware professionals.

The AUCN8847FLRH626 is suited for entrance and apartment applications where both a latchbolt and dead bolt are required in a single mortise unit. Right-hand configuration ships standard, with field-reversible handing to accommodate left-hand doors without ordering a separate unit. The curved lip strike is included. This product fits doors in the 1-3/4 to 3-1/4 inch thickness range, making it appropriate for both standard hollow-metal commercial doors and heavier solid-core applications found in apartment corridors, office suites, and multi-tenant residential buildings.

Key Features

• Grade 1 extra heavy-duty performance rating per ANSI/BHMA A156.13 Series 1000
• Integrated dead bolt and latchbolt in a single standard mortise cylinder configuration
• Field-reversible handing eliminates the need to order separate left- or right-hand units
• Fits door thickness range of 1-3/4 to 3-1/4 inches with a 2-3/4 inch backset
• Satin chrome finish over zinc construction with curved lip strike included
• UL/cUL listed; includes 2 keys

Compatibility

Designed as an OEM-style replacement or new-install mortise lockset for commercial and multi-family residential doors within the 1-3/4 to 3-1/4 inch thickness range. Ships right-hand handing with field-reversible capability for left-hand door applications.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with mortise lockset prep and ANSI door prep standards. Verify door thickness, backset dimension, and handing before beginning cutout work, as mortise pockets are not easily repaired if mis-cut. Confirm the door frame is properly reinforced to support a mortise application before installing the strike. Follow applicable local building codes for egress and accessibility requirements when installing locksets in commercial or multi-family settings.
