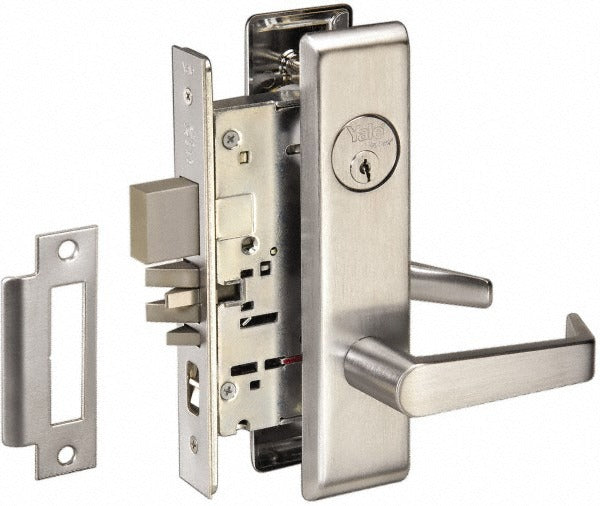

Yale AUCN8847FLLH626 Deadbolt Lever Lockset Grade 1

Product Description

The YALE AUCN8847FLLH626 is a Grade 1 entrance and apartment lever lockset with an integrated dead bolt, designed for commercial and residential doors ranging from 1-3/4 to 3-1/4 inches in thickness. It uses a standard mortise cylinder with a 2-3/4 inch backset and ships with two keys. The Satin Chrome finish over zinc construction meets ANSI/BHMA A156.13 Series 1000 standards and carries UL/cUL listing. This lockset is rated Extra Heavy-Duty and is intended for installation by licensed locksmiths or commercial door hardware professionals where Grade 1 security performance is required.

This lockset is suited for entrance and apartment applications where a combined lever handle and dead bolt are required in a single mortise unit. The left-hand configuration is factory set, and the unit is field reversible for handing adjustments on site. The curved lip strike is included for standard mortise prep. It is appropriate for multi-family residential, light commercial, and apartment corridor doors where ANSI Grade 1 hardware is specified.

Key Features

• ANSI/BHMA A156.13 Series 1000 certified, Grade 1 Extra Heavy-Duty performance rating
• UL/cUL listed for use in fire-rated door assemblies where applicable
• Field reversible handing allows left- or right-hand installation without additional parts
• Standard mortise cylinder with 2-3/4 inch backset fits common commercial door prep
• Curved lip strike included for proper mortise lockset installation
• Satin Chrome finish provides corrosion resistance in high-traffic environments

Compatibility

Designed for standard mortise door prep on doors 1-3/4 to 3-1/4 inches thick. Factory configured for left-hand installation; field reversible handing accommodates right-hand applications. Compatible with doors prepared to ANSI standard mortise cutout dimensions.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial mortise lockset procedures. Verify door hand and bevel before installation and confirm the mortise pocket depth matches the lockset body dimensions. Secure all mounting hardware to manufacturer torque specifications using appropriate tools. Confirm dead bolt throw and lever return function correctly before completing installation and handing the door back to service.
