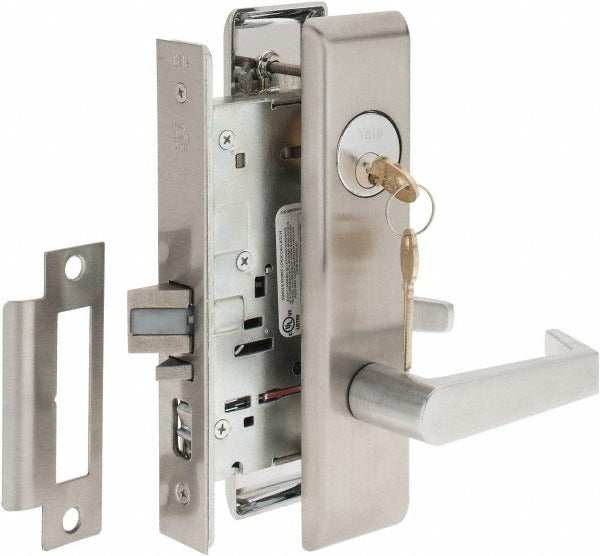

Yale AUCN8807FLRH626 Entrance Lever Lockset Grade 1

Product Description

The YALE AUCN8807FLRH626 is a Grade 1 entrance lever lockset designed for commercial and heavy-duty residential door applications. Built to ANSI/BHMA A156.13 Series 1000 standards and UL/cUL listed, this unit delivers extra heavy-duty performance in a satin chrome finish. The lockset features a standard mortise cylinder with a 2-3/4 inch backset and accommodates door thicknesses from 1-3/4 to 3-1/4 inches. Field reversible handing allows installation flexibility on right- or left-hand doors without special ordering. Two keys are included. Licensed contractors and commercial door hardware installers specify this series for projects requiring certified, code-compliant locksets.

The AUCN8807FLRH626 is suited for entrance doors in commercial offices, institutional facilities, and heavy-duty residential applications. It is factory set for right-hand operation but is field reversible, making it adaptable to a range of door configurations without returning to the supplier. The curved lip strike and standard mortise cylinder align with common door prep specifications found on commercial hollow metal and solid wood doors in the 1-3/4 to 3-1/4 inch thickness range. Installers working on projects governed by accessibility or building codes should verify hardware compliance with applicable local requirements prior to installation.

Key Features

• Grade 1 extra heavy-duty performance rating per ANSI/BHMA A156.13 Series 1000
• UL/cUL listed for use in rated door assemblies where required
• Standard mortise cylinder with 2-3/4 inch backset
• Field reversible handing — right-hand factory default, convertible on site
• Curved lip strike included
• Satin chrome finish on zinc construction with wrought steel components
• Includes 2 keys

Compatibility

Designed for doors 1-3/4 to 3-1/4 inches thick with standard mortise door prep. Part of the Yale 8800 Series entrance lockset line.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware installer familiar with mortise lockset procedures. Verify door prep dimensions, backset measurement, and handing before beginning installation. Confirm the door is not under load and is fully supported before removing existing hardware or cutting mortise pockets. Local building codes and fire-rated door assembly requirements govern hardware selection and installation in commercial applications.
