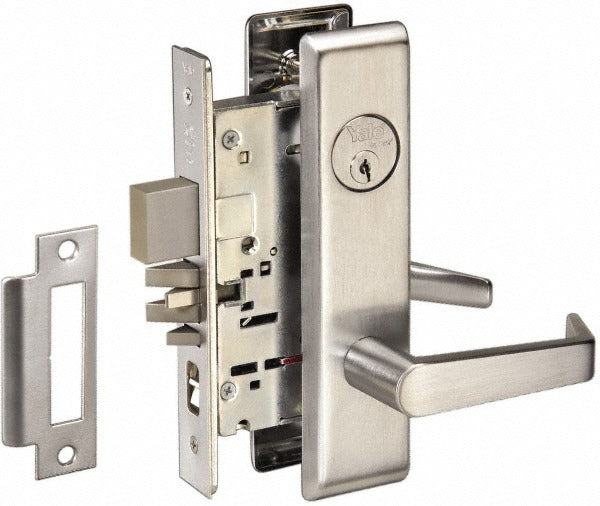

Yale AUCN8801FLRH626 Passage Lever Lockset Grade 1

Product Description

The YALE AUCN8801FLRH626 is a Grade 1 passage lever lockset from the 8800 Series, designed for commercial and heavy-duty residential door applications. This lockset provides unlatching passage function without key or turn operation, making it suitable for hallways, corridors, and common-area doors. It features a 2-3/4 inch backset, a standard mortise cylinder type, and a satin chrome finish over zinc construction. The curved lip strike and field-reversible handing add installation flexibility. Rated Extra Heavy-Duty and certified to ANSI/BHMA A156.13 Series 1000, this lockset is built to withstand high-cycle commercial environments. Licensed HVAC, plumbing, and facility maintenance professionals and commercial locksmiths typically specify Grade 1 hardware for these installations.

The AUCN8801FLRH626 is suited for commercial buildings, institutional facilities, and high-traffic interior doors where a passage function is required. It accommodates door thicknesses ranging from 1-3/4 to 3-1/4 inches, covering a wide range of hollow metal and wood door configurations common in commercial construction. The right-hand configuration and field-reversible handing allow the installer to adapt the lever to the door swing on site. Two keys are included with the unit.

Key Features

• Grade 1 Extra Heavy-Duty lockset certified to ANSI/BHMA A156.13 Series 1000
• UL and cUL listed for fire-rated door applications
• 2-3/4 inch backset with standard mortise cylinder type
• Accommodates door thicknesses from 1-3/4 to 3-1/4 inches
• Field-reversible handing for flexible on-site installation
• Curved lip strike included; satin chrome finish over zinc construction

Compatibility

Designed as an OEM-style Grade 1 passage lever lockset compatible with commercial and heavy-duty residential doors ranging from 1-3/4 to 3-1/4 inches in thickness with a standard 2-3/4 inch backset and standard mortise cylinder preparation.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware professional in accordance with applicable building codes and the door manufacturer's specifications. Verify door preparation dimensions, including backset and bore diameter, before installation. Power down any access control or electric strike systems integrated with the door assembly before beginning work. Field-reversible handing should be set prior to final mounting to avoid disassembly after installation.
