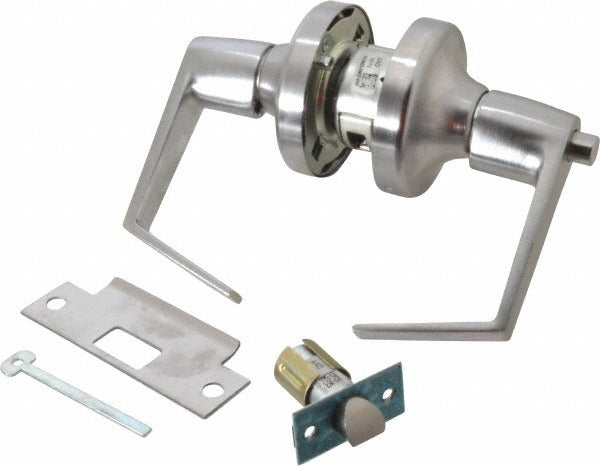

Yale AU5302LN23/4626 Privacy Lever Lockset Satin Chrome

Product Description

The YALE AU5302LN23/4626 is a Grade 2 privacy lever lockset designed for interior doors ranging from 1-3/8 to 1-3/4 inches in thickness. Built from steel with a US26D satin chrome plated finish, it features a 6-pin Para keyway cylinder and a 2-3/4 inch backset. The lockset is non-handed, meaning it installs on doors swinging in either direction without special ordering. It ships with two keys and includes an adjustable door thickness mechanism that accommodates common residential and light commercial door profiles. Licensed HVAC techs, plumbers, and facility maintenance professionals frequently encounter this type of hardware during tenant improvement and equipment room buildouts.

The AU5302LN23/4626 is suited for interior privacy applications such as bathrooms, bedrooms, and private offices where a push-button or turn-button locking function is required without a keyed exterior cylinder for egress. The 5300LN series targets light commercial and residential settings where ANSI Grade 2 performance is specified. The non-handed design and adjustable backset mechanism simplify installation across varied door preparations, reducing the need for job-site modifications.

Key Features

• ANSI/BHMA A156.2 Series 4000 Grade 2 rated for heavy-duty interior use
• UL and cUL listed for code-compliant installations
• 6-pin Para keyway cylinder included with 2 keys
• 2-3/4 inch backset fits standard door preparations
• Non-handed design installs on left- or right-hand doors without conversion
• Adjustable thickness mechanism accommodates doors from 1-3/8 to 1-3/4 inches
• Satin chrome (US26D) finish resists tarnish in high-contact environments

Compatibility

Designed for interior doors measuring 1-3/8 to 1-3/4 inches in thickness with a standard 2-3/4 inch backset preparation. Part of the Yale 5300LN series.

Installation Notes

Installation is performed by a licensed locksmith, general contractor, or qualified maintenance technician. Verify the door bore diameter and backset dimension match the lockset preparation before installation. Ensure the door is fully closed and the latch aligns with the strike plate before final fastening. Consult applicable local building codes for privacy hardware requirements in commercial occupancies.
