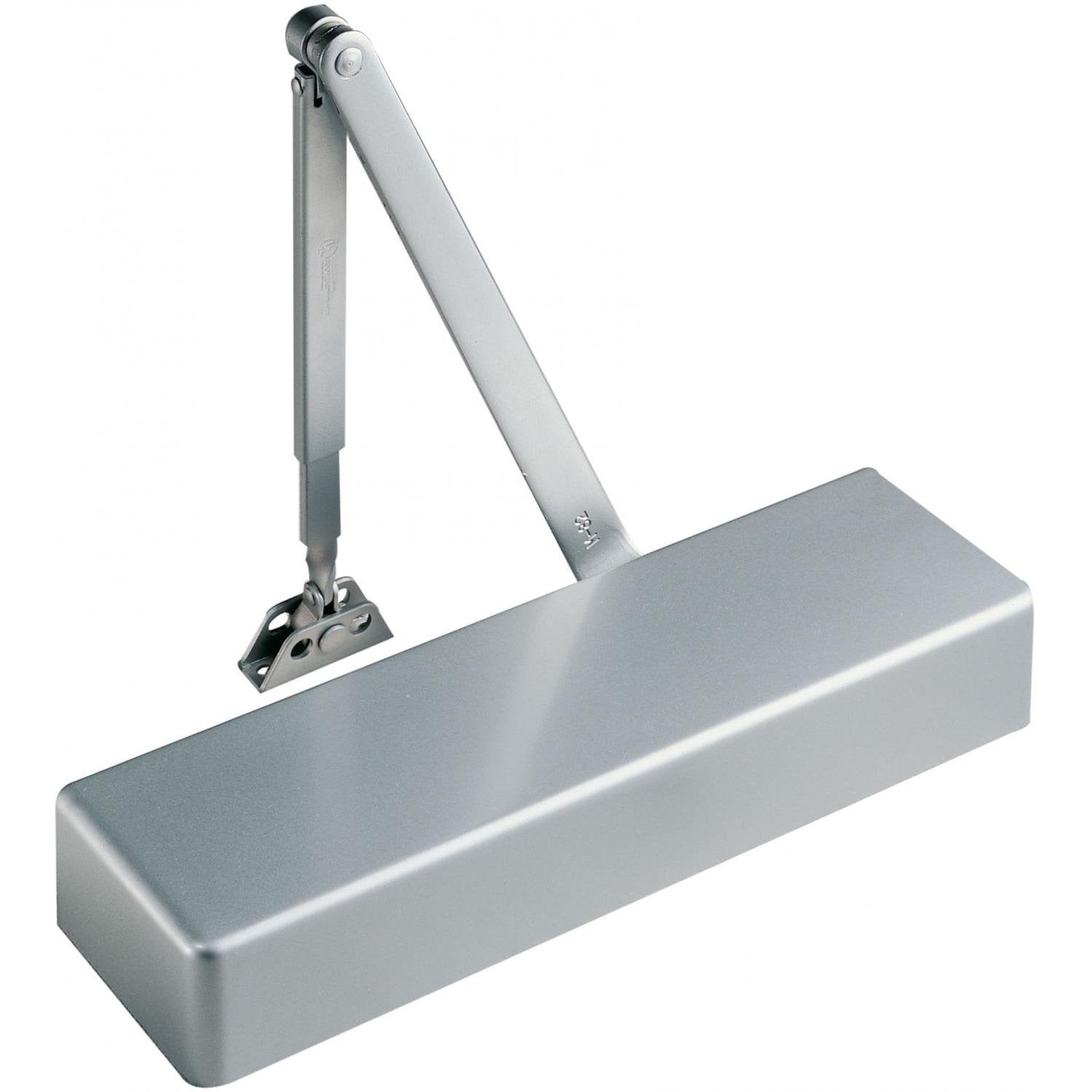

Yale 4400 689 Grade 1 Surface Door Closer Size 1-6

Product Description

The YALE 4400 689 is a Grade 1 surface-mounted door closer designed for commercial and institutional door applications. It features a regular arm configuration with a tri-mount installation option, allowing for flexible placement on the door, frame, or soffit side. The closer is non-handed, which means a single unit works for both left- and right-hand door swings. Size 1-6 adjustability gives installers the ability to set closing force across a wide range of door widths and weights. The body is finished in sprayed aluminum and includes a plastic full body cover with sleeve nuts for a clean, professional appearance.

This closer is suited for commercial entryways, office buildings, schools, healthcare facilities, and other high-traffic doors requiring Grade 1 performance. The tri-mount design accommodates standard, parallel, and top jamb mounting configurations, making it adaptable to a variety of door and frame conditions. The 180-degree swing capability allows doors to open fully without the closer limiting travel, which is important in corridor and accessible-route applications.

Key Features

• Grade 1 commercial-duty surface closer for high-cycle, high-traffic installations
• Non-handed design installs on left- or right-hand doors without modification
• Size 1-6 adjustable closing force accommodates a wide range of door sizes and weights
• Tri-mount capability supports standard, parallel, and top jamb mounting
• 180-degree door swing for full door travel in corridor and accessible-route applications
• Aluminum body with stainless steel components and plastic full body cover for durability and finished appearance

Compatibility

Designed as an OEM-style replacement or new-installation Grade 1 surface door closer suitable for commercial hollow metal and wood doors where a regular arm, tri-mount configuration is specified.

Installation Notes

Installation is typically performed by a commercial door hardware technician or licensed locksmith following the manufacturer's template instructions. Shut down any access control or electric strike circuits tied to the door before beginning work. Use the provided sleeve nuts and follow the tri-mount template carefully to ensure proper arm geometry and prevent binding. Verify closing speed, latching speed, and back-check adjustments with the door in operation before leaving the job site.
