Xylem-Hoffman Specialty 160011 WCS8-20B 1/3HP Single 8000 EDR

Product Description

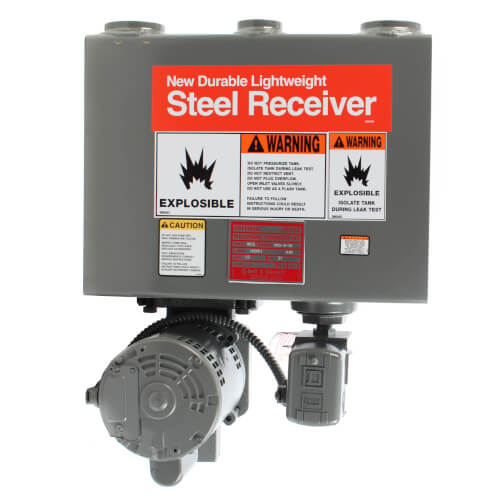

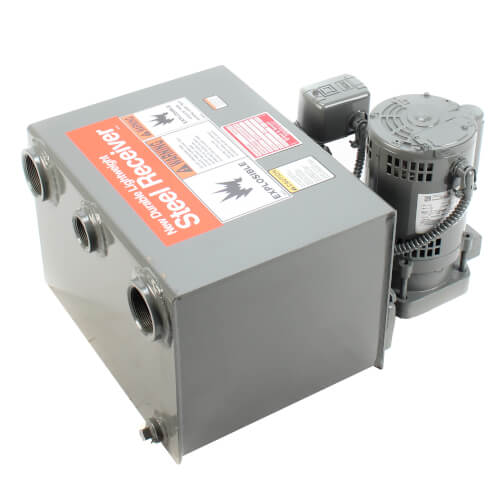

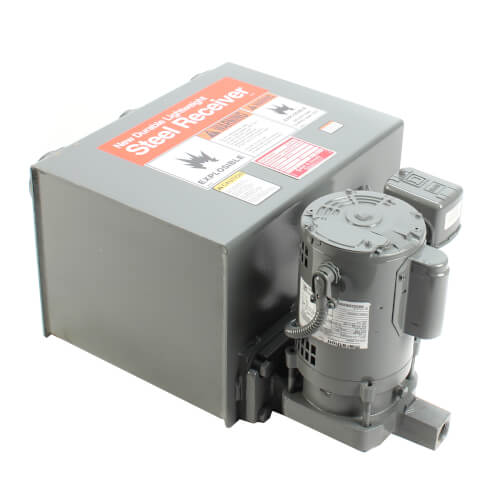

The Xylem-Hoffman Specialty 160011 WCS8-20B 1/3HP Single 8000 EDR Condensate Return System is designed for efficient condensate return to the boiler. Ideal for residential, commercial, institutional, and industrial steam heating and processing applications, this unit offers reliability and a broad range of use cases.

• 1/3 horsepower motor
• 8000 EDR system
• Steel receiver

Product Highlights

This condensate return system features NPT drain and vent connections, a double pole float switch, and a steel receiver. It's easy to install and service with its vertical pump design and mechanical alternator for duplex models.

Product Information

Standard Information

• Manufacturer: Xylem-Hoffman Specialty
• MPN: 160011

Technical Specifications

• Voltage: 115/208-230v
• Material: Steel
• Weight: 83.95
• Pump Style: Simplex
• Horse Power: 1/3
• System Sq. Ft. EDR: 6000
• Pump Capacity (GPM): 9
• Discharge Pressure (PSIG): 21
• Receiver Capacity (Gallons): 6
• Phase: Single
• Series: Watchman Series
• Frequency: 60 Hz
• Standards: UL Listed
• Maximum RPM: 3500
• Overall Width: 16 in
• Series Family: WCS
• Tank Capacity: 9 gal
• Overall Height: 16 in
• Overall Length: 22.88 in
• Drain Port Size: 1/2 in
• Number of Pumps: 1
• Impeller Material: Bronze
• Nameplate Voltage: 115V AC
• Body Gasket Material: Carbon, Ceramic
• Maximum Feet of Head: 12 ft
• Pump Activation Type: Float Switch
• Compatible Media Type: Water
• Pump Housing Material: Bronze
• Motor Enclosure Design: Open Drip-Proof
• Pump Mounting Position: Vertical
• Intake Connection Style: NPT
• Overflow Port Pipe Size: 2 in
• Vent Line Port Pipe Size: 1 1/4 in
• Maximum Media Temperature: 200 Degrees F
• Discharge Connection Style: NPT
• Electrical Connection Type: Hardwired
• Compatible Intake Pipe Size: 2 in
• Compatible Discharge Pipe Size: 3/4 in
• Country of Origin: United States
• Equivalence of Direct Radiation Rating: 8,000
