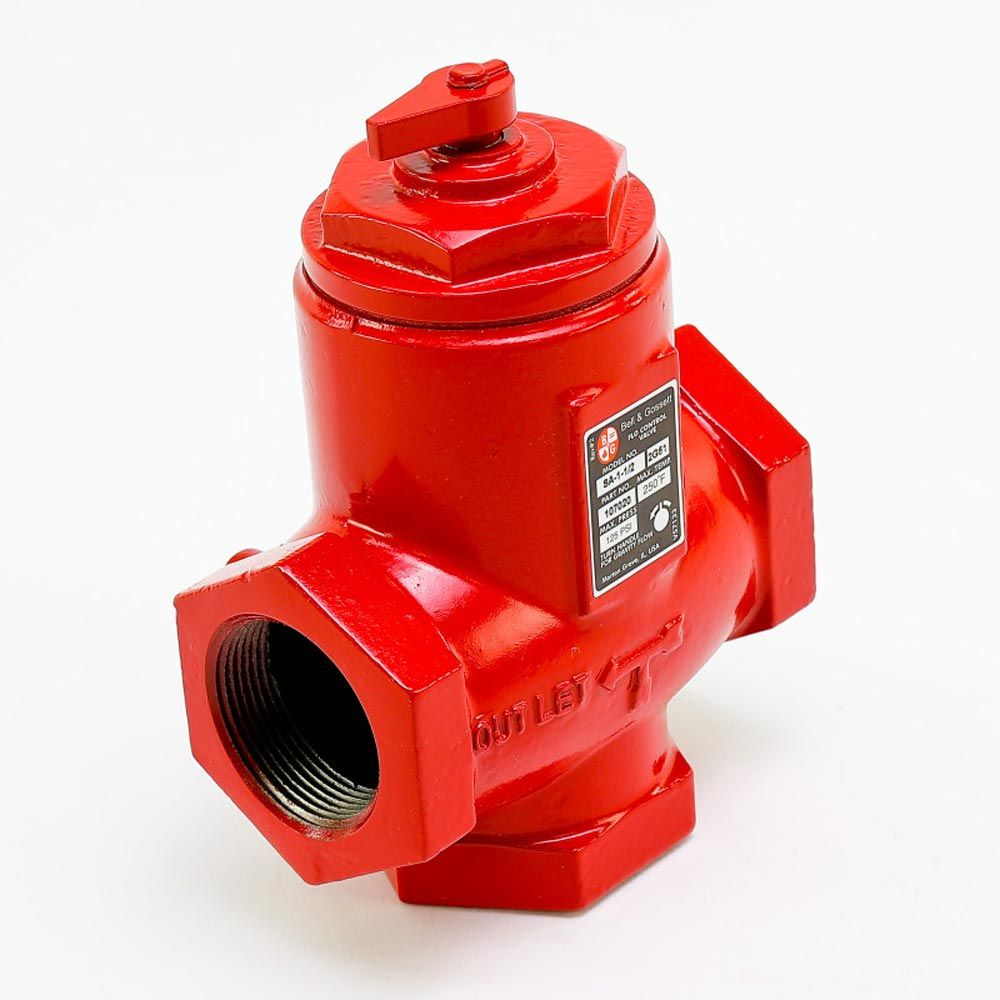

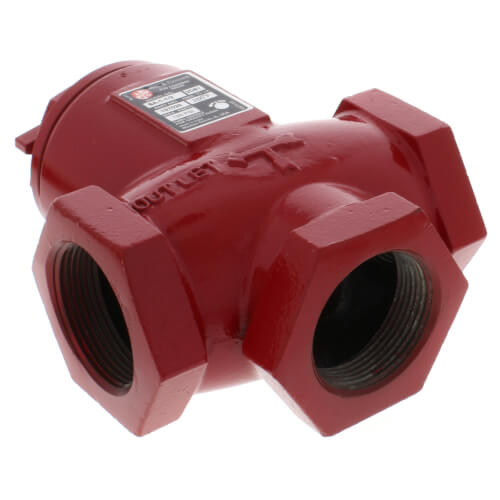

Bell & Gossett 107020 1-1/2 Inch Straight-Angle Flow Control Valve Iron Body

Product Description

The Bell & Gossett 107020 Flo-Control Valve is designed for precise water flow management in HVAC systems. Engineered with a durable iron body, this 1-1/2 inch valve can be installed in either a straight or angle pattern to suit various system configurations.

• Compatible with forced water and indirect heating systems
• Prevents gravity flow and allows for seasonal operation adjustments
• Manual operating position for vertical lift disc enabling gravity circulation

Product Highlights

With its robust construction, the Bell & Gossett Flo-Control Valve ensures reliable performance under a maximum temperature of 250 degrees Fahrenheit and a pressure limit of 125 psi. Its versatile design allows for both horizontal and vertical installations, making it an optimal choice for professional HVAC and plumbing setups.

Product Information

Standard Information

• Body Material: Iron
• Connection Type: FNPT x FNPT
• Valve Size: 1-1/2 inch

Technical Specifications

• Max Pressure: 125 psi
• Max Temperature: 250 degrees Fahrenheit
• Inlet to Outlet Length: 5 inches
• Overall Dimensions: 3 inches Diameter x 7-1/4 inches Height
