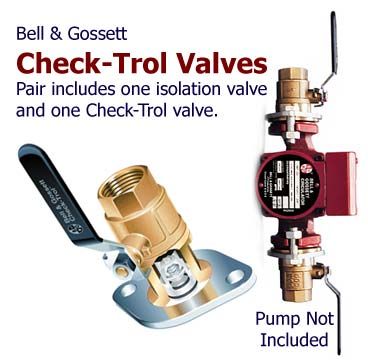

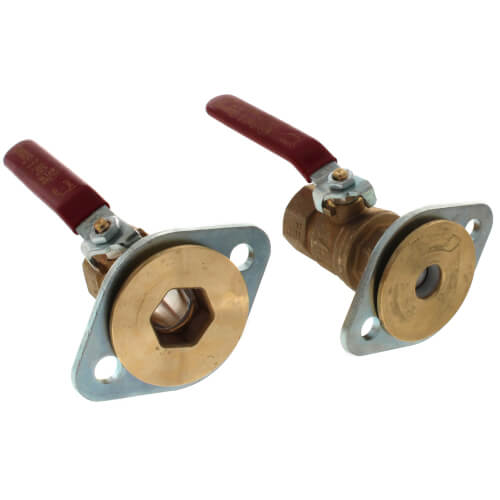

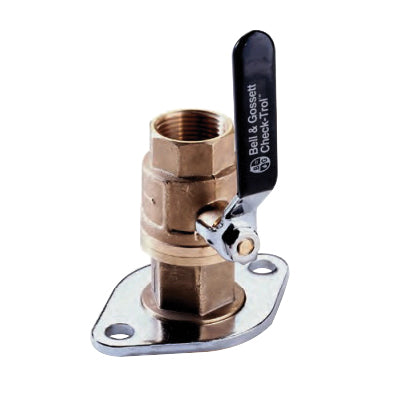

Bell & Gossett 101232LF CTF 1 inch NPT Bronze Isolation & Check-Trol Valve

Product Description

Bell & Gossett model 101232LF features a combination of isolation and Check-Trol flanges, facilitating easy and rapid installation or removal of circulator pumps in HVAC systems. This model is designed for a one inch NPT connection and is crafted from durable bronze, ensuring longevity and resistance to corrosion.

• Engineered for straightforward installation and removal of pumps.
• Built with a full port ball valve to isolate circulators without draining the system.
• Includes an internal spring check to prevent unwanted flow and gravity circulation.

Product Highlights

The Check-Trol flange pairs excellently with various circulators like Bell & Gossett NRF, NBF, SSF series, and other compatible models from brands like Grundfos and Taco.

Product Information

Standard Information

• Connection Type: NPT x Flanged
• Material: Bronze

Technical Specifications

• Maximum Pressure: 150 psi
• Temperature Rating: 200 degrees Fahrenheit1i>
