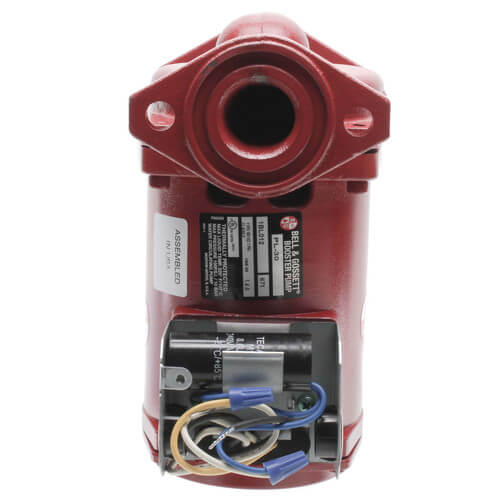

Bell & Gossett 1BL012 PL Series Maintenance-Free Booster Pump, 115 VAC, 1/12 hp

Product Description

The Bell & Gossett 1BL012 PL Series maintenance-free booster pump is designed for reliable operation in hydronic and geothermal heating systems. This model operates on 115 VAC power and features a 1/12 horsepower motor. The pump is ideal for applications requiring efficient water recirculation and provides exceptional performance with low maintenance needs.

• Permanently lubricated for maintenance-free operation
• Cast iron construction for durability
• Max flow rate of up to 70 GPM and maximum head of 18 feet

Product Highlights

This pump is suitable for both residential and light commercial use, providing efficient heating and potable water solutions.

Product Information

Standard Information

• Brand: Bell & Gossett
• Manufacturer Part Number: 1BL012

Technical Specifications

• Power Rating: 1/12 hp
• Voltage Rating: 115 VAC
• Amperage Rating: 1.4 A
• Frequency Rating: 60 Hz
• Maximum Pressure: 150 psi
• Operating Temperature: 225 deg F
• Dimensions: 8-5/8 in L x 6-3/8 in H
• Motor Speed: 2650 rpm
• Impeller Material: Glass-Filled Noryl
• Mounting Type: In-Line
• Series: PL Series
