Bell & Gossett 1BL003LF PL 36B LF 115/60/1

Product Description

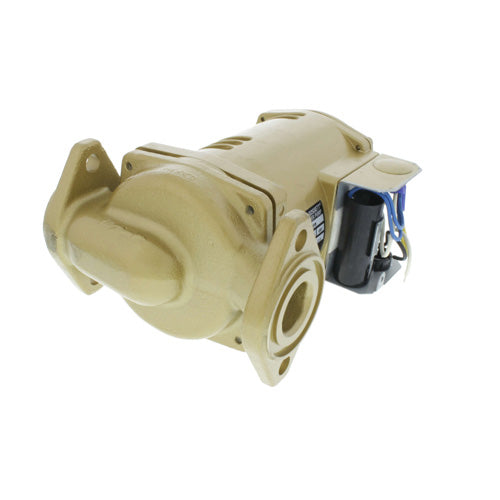

The Bell & Gossett 1BL003LF PL 36B is a bronze booster pump with a power rating of one sixth horsepower, operating at 115 volts with a frequency of sixty hertz. This pump is designed for hydronic heating and cooling applications, providing efficient performance with a maximum flow rate of forty gallons per minute and fifty feet of head. Its construction features lead-free bronze material, which offers durability and corrosion resistance.

• Designed for hydronic heating and cooling.
• Operates quietly for residential and commercial use.
• Easy installation with multiple connection sizes.

Product Highlights

The Bell & Gossett PL 36B is ideal for various systems, including geothermal and radiant heating. It features an oil-lubricated bearing system, ensuring maintenance-free operation.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• Model: 1BL003LF

Technical Specifications

• Power Rating: 1/6 hp
• Voltage Rating: 115 VAC
• Amperage Rating: 2.1 A
• Frequency Rating: 60 Hz
• Maximum Feet of Head: 40 ft
• Maximum Flow Rate: 40 gpm
• Dimensions: 8-5/8 in W x 6-3/8 in H x 4-3/8 in D
• Temperature Rating: 225 deg F
• Pressure Rating: 150 psi
• Connection Sizes: 3/4, 1, 1-1/4, 1-1/2 in NPT
• Impeller Material: Glass-Filled Noryl
• Model Series: PL
