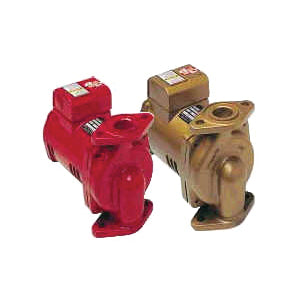

Bell & Gossett 1BL001 PL Series Maintenance-Free Booster Pump, 115 VAC, 1/6 HP

Product Description

The Bell & Gossett 1BL001 is a maintenance-free booster pump designed for hydronic, radiant, and geothermal heating and cooling systems. This pump operates efficiently at 115 VAC and uses a 1/6 horsepower motor to provide reliable circulation. It features a compact design and is built with a durable cast iron casing, making it suitable for various applications including residential and light commercial systems.

• Suction and discharge sizes available in 3/4 inch to 1 1/2 inch.
• Flow rates up to 40 gallons per minute.
• Operating temperature up to 225 degrees Fahrenheit.

Product Highlights

This in-line wet rotor pump is engineered for quiet operation and provides dependable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• MPN: 1BL001

Technical Specifications

• Power Rating: 1/6 HP
• Voltage: 115 VAC
• Current: 2.1 A
• Max Pressure: 150 PSI
• Max Flow Rate: 40 GPM
• Max Head: 40 FT
• Speed: 3300 RPM
• Material: Cast Iron
• Temperature Rating: 225 Deg F
• Connection Type: Flanged x Flanged
• Seal Type: Carbon on Silicon Carbide
