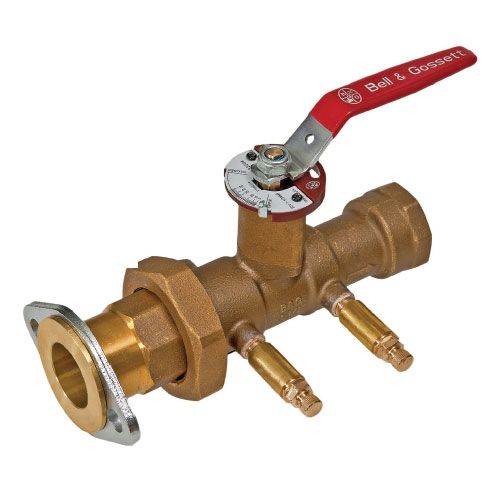

Bell & Gossett 132203 3DV-1-1/4 Rotatable Flanged Triple Duty Valve

Product Description

The Bell & Gossett 3DV-1-1/4 is a triple duty valve featuring a rotatable flange. This valve combines three functions: a check valve, a shut-off valve, and a balancing valve all in one unit. It is designed for use on the discharge side of pumps.

• This valve has a size of one and one-quarter inches and features a flanged connection.
• The valve is suitable for water applications and has a maximum pressure rating of two hundred psi WSP.
• It operates within a temperature range from negative four degrees Fahrenheit to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve provides reliable performance and functionality for various hydraulic systems, making it an essential component for HVAC and plumbing applications.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 132203

Technical Specifications

• Model: 3DV-1-1/4RFF
• Valve Size: 1-1/4 inches
• Valve Connection: Flanged
• Piping Configuration: Straight
• Body Material: Brass
• Valve Application: Water
• Max Pressure: 200 psi WSP
• Max Temp: 250°F
• Weight: 4.60 lbs
