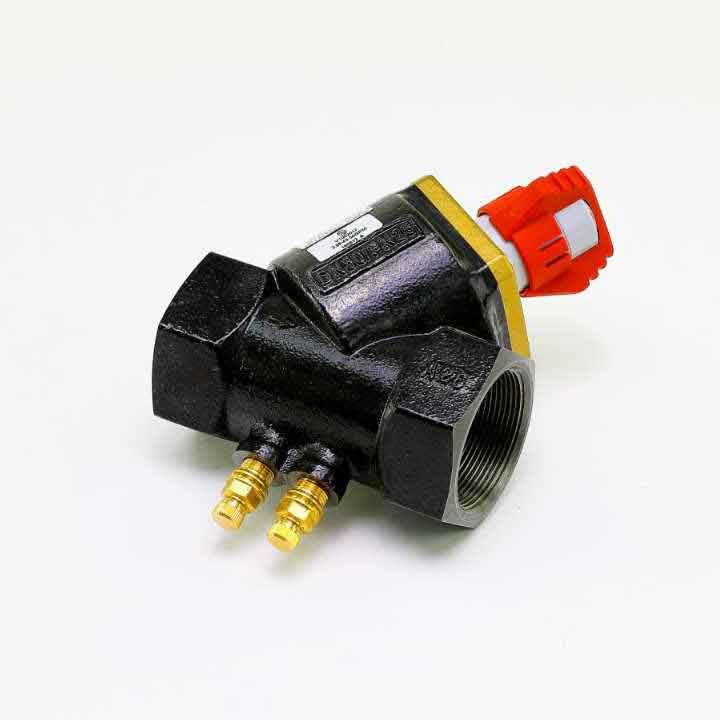

Bell & Gossett 117638 Model FS-2 Circuit Sentry Flo-Setter II Balance Valve

Product Description

The Bell & Gossett FS-2 Circuit Sentry Flo-Setter II Balance Valve, part number 117638, is designed for water applications with a robust operating temperature range of fourteen to two hundred fifty degrees Fahrenheit. This valve accommodates a flow capacity from three point ninety-six to forty-five point fifty-seven gallons per minute. The GPM flow setting adjustment dial allows for independent flow rate changes without system shutdown. Additionally, it is equipped with an internal flow setting and differential pressure regulating element, providing integral isolation and shutoff features. The external locking handle and capped one-fourth inch P/T ports enhance usability.

• Operating temperature: 14-250°F
• Flow capacity: 3.96 to 45.57 GPM
• Integrated isolation and shutoff capabilities

Product Highlights

This valve is engineered for precise water flow management in HVAC systems.

Product Information

Standard Information

• Brand: Bell & Gossett
• Model: FS-2

Technical Specifications

• MPN: 117638
• Valve Application: Water
• Body Material: Ductile Iron
• Valve Size: 2 inches
• Valve Connection: NPT
• Max Pressure: 375 psi
• Weight: 7.50 lbs
